Leura Motorhome
Compact Luxury for Your Australian Adventures
NEW MY25 MODEL AVAILABLE
Small Motorhome for Sale

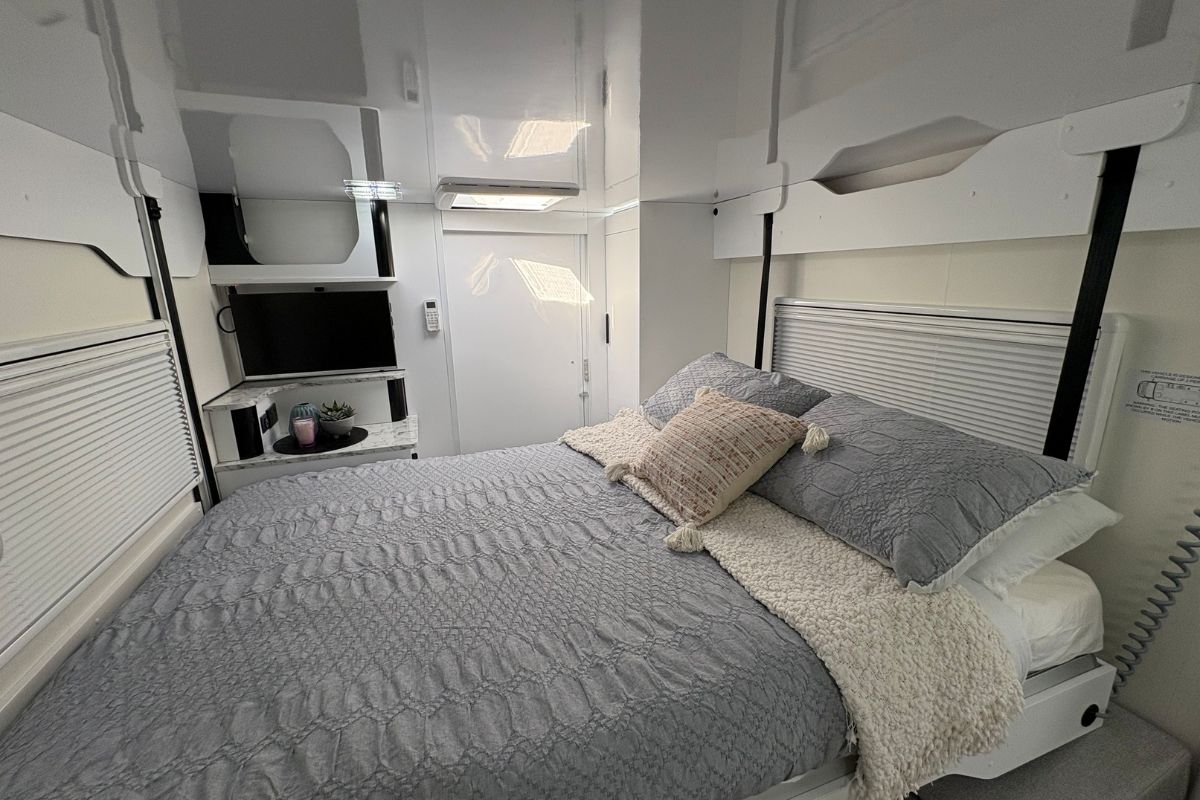

Leura Motorhome – Drop down electric bed
4
Standard car licence
Composite Sandwich Panel
Smart TV

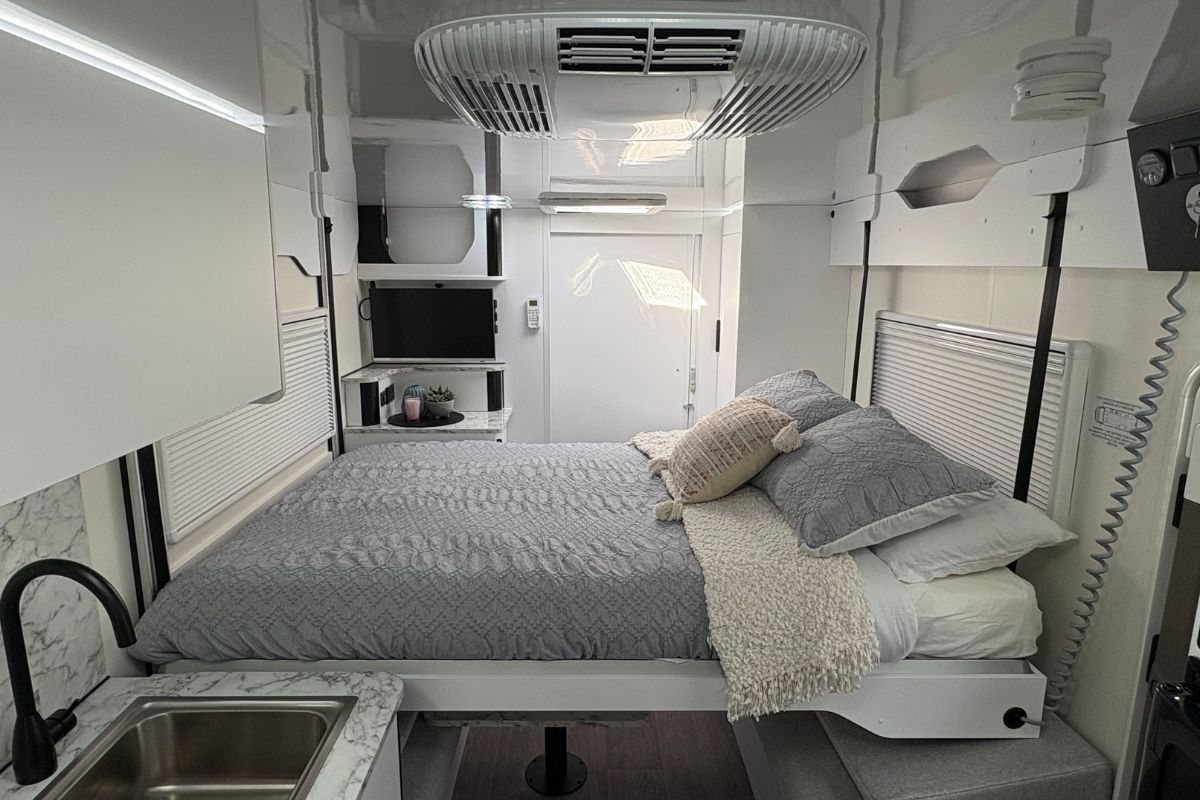

Electric Bed

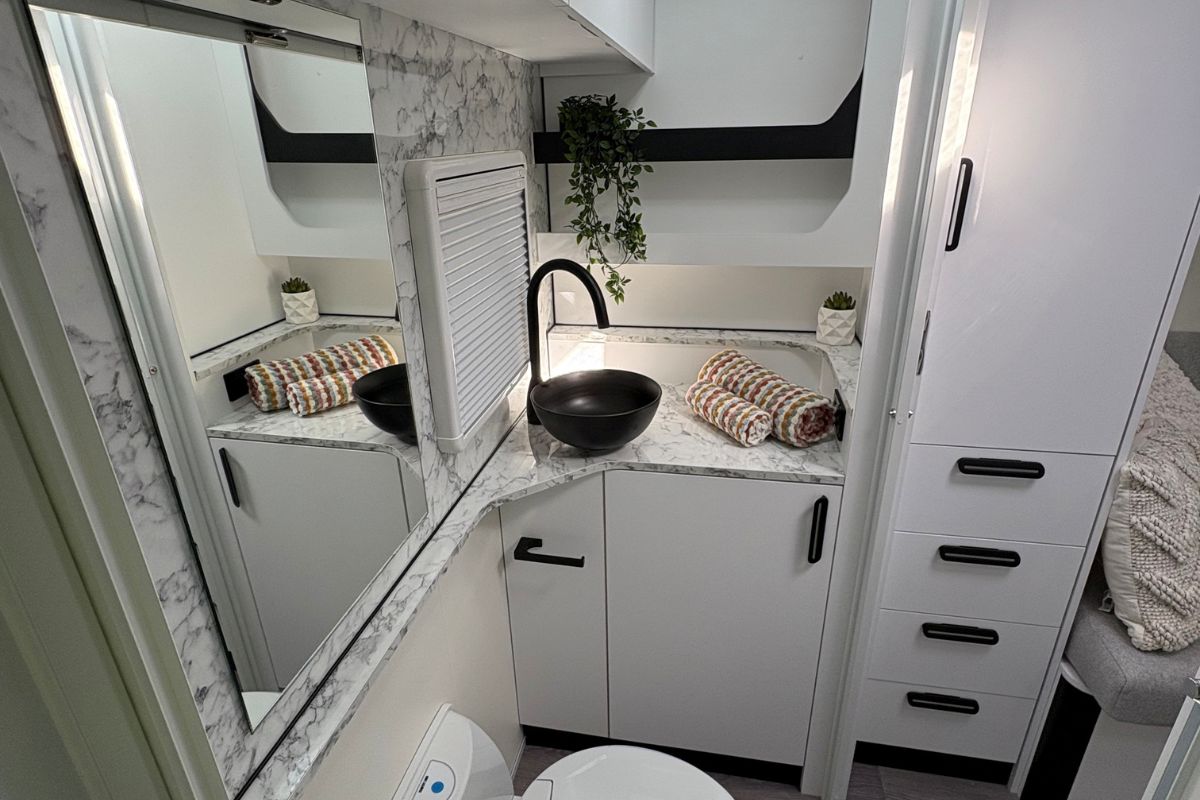

Shower
Toilet

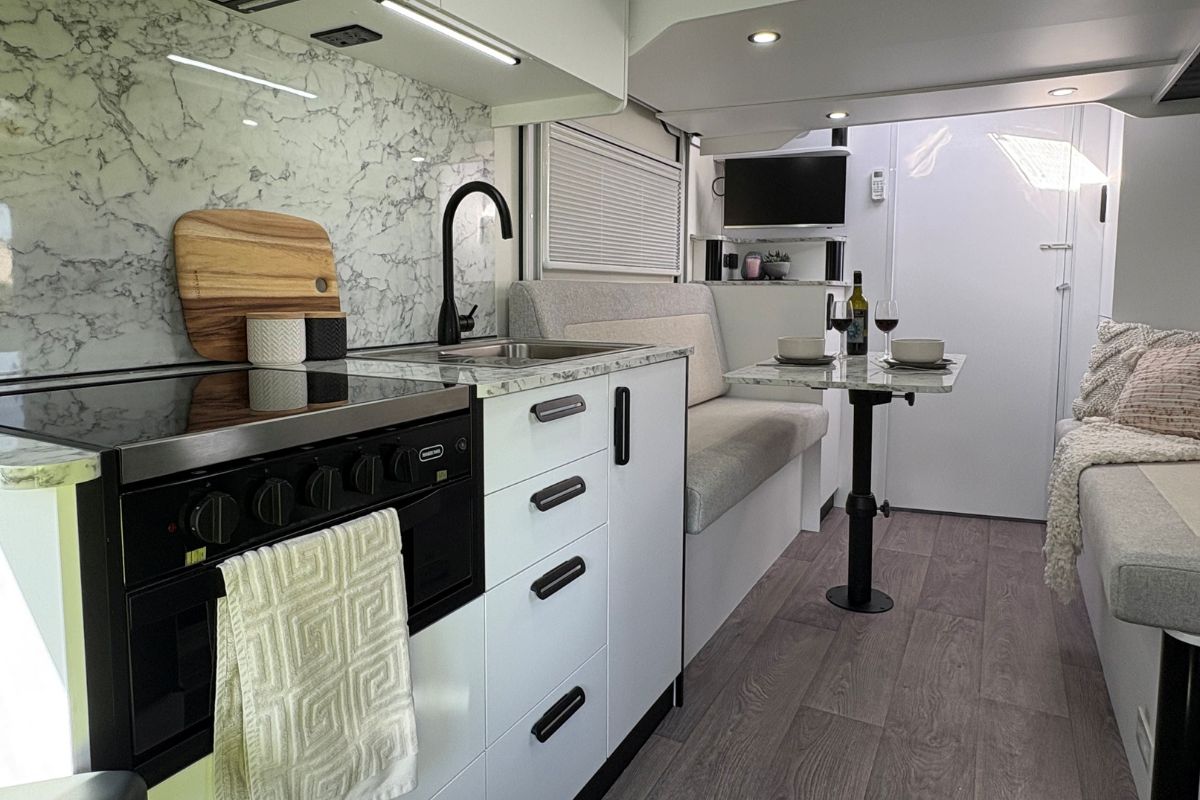

Kitchen
The Avida Leura motorhome offers plenty of living area without compromising on comfort. Enjoy the ample lounge area with table for dining. Drop down your electric roll down bed for sleeping. The kitchen is behind the cab on the drivers side and the bathroom with shower and toilet facilities is at the rear of the motorhome.
- Compact Design, Spacious Living
- Easy to Drive, Easy to Park
- Fully Equipped for Comfort
- Lithium battery, solar & external BBQ storage
"Leura is a dream to drive and easy to park. It has everything I need."
Dorothy
Evanston Park SA
Gallery
See The Leura Motorhome In Action
Experience the Avida Leura motorhome with our collection of exterior, interior and lifestyle images and videos.
- All
- Exterior
- Interior

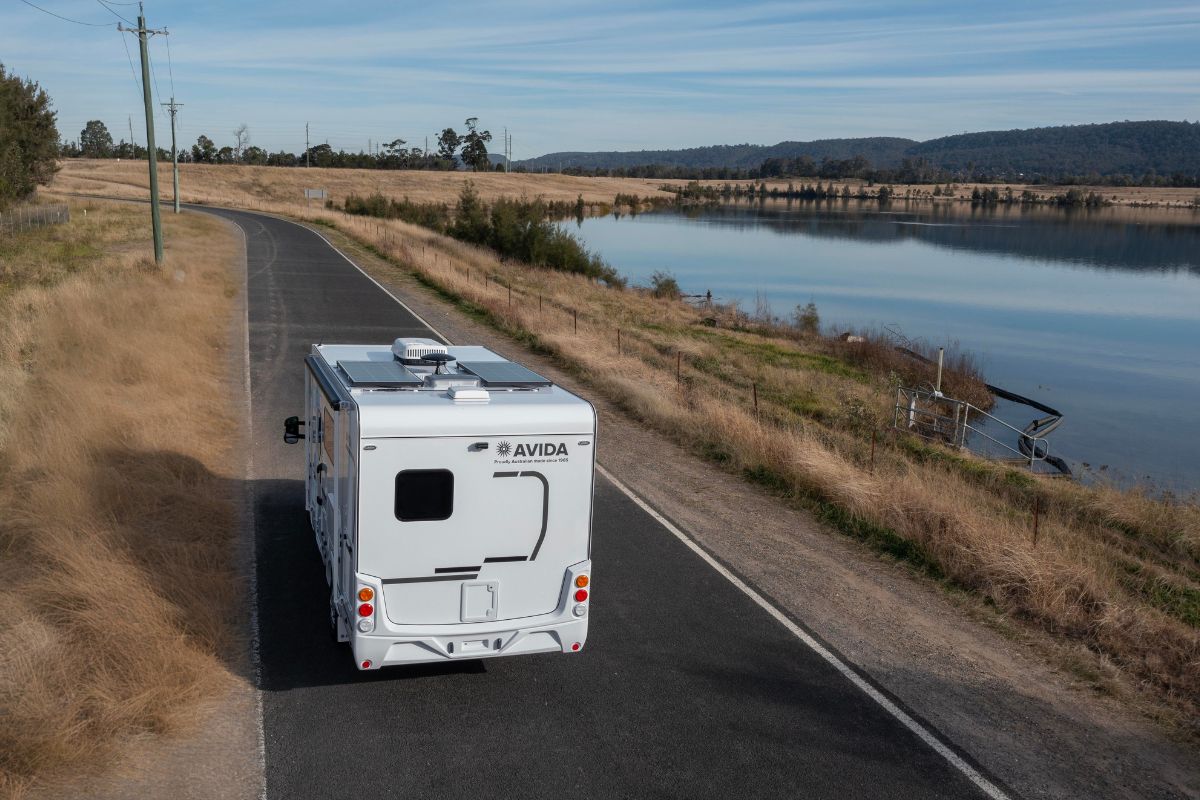

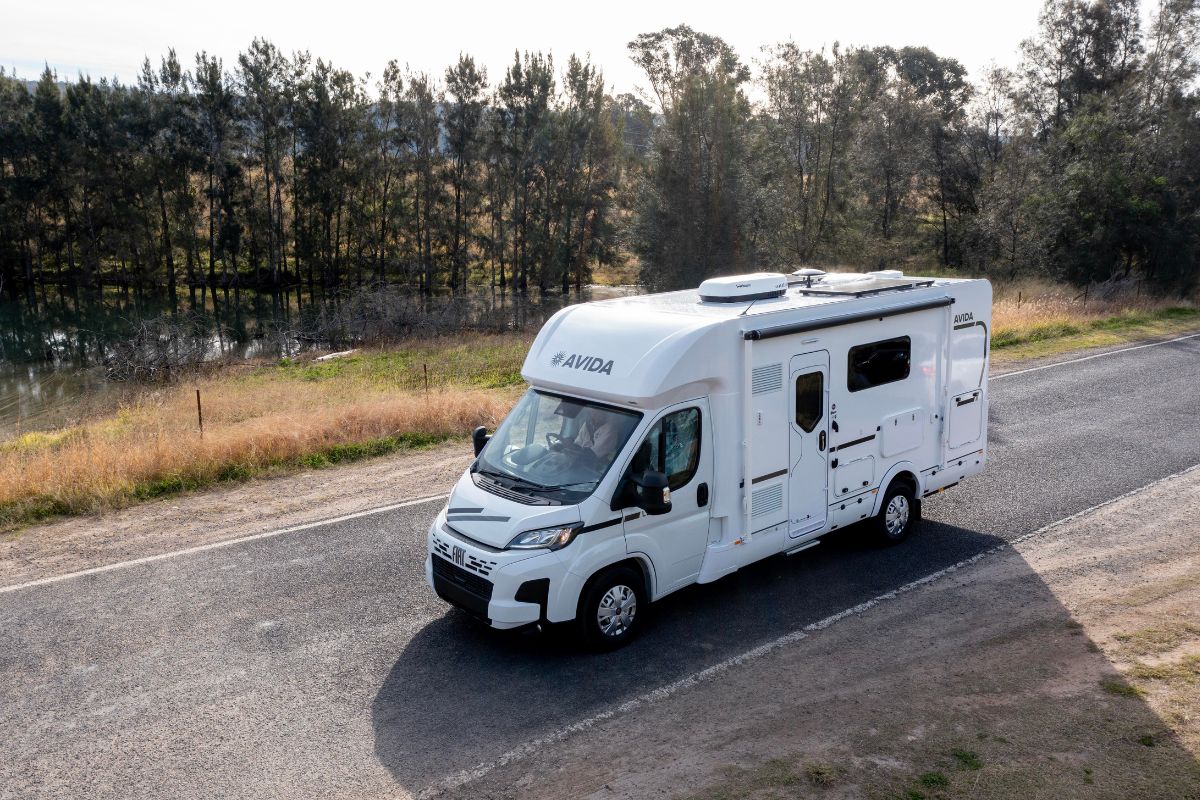

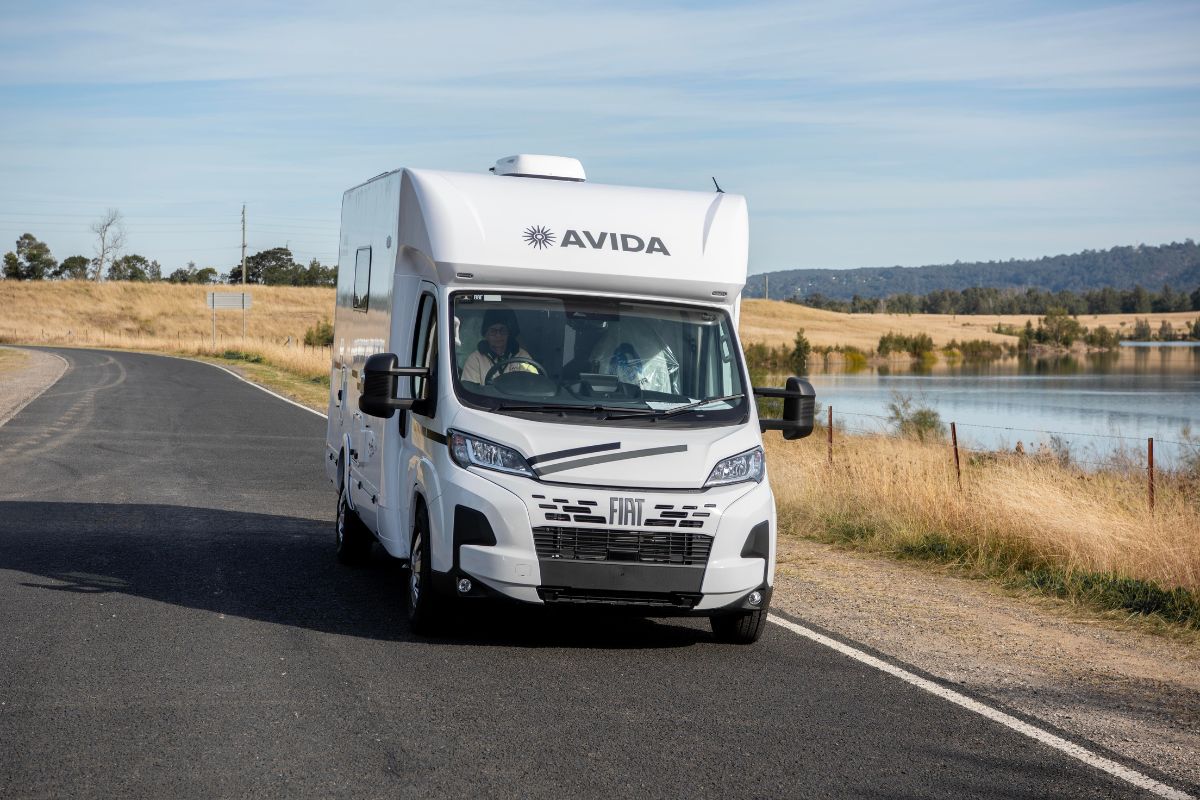

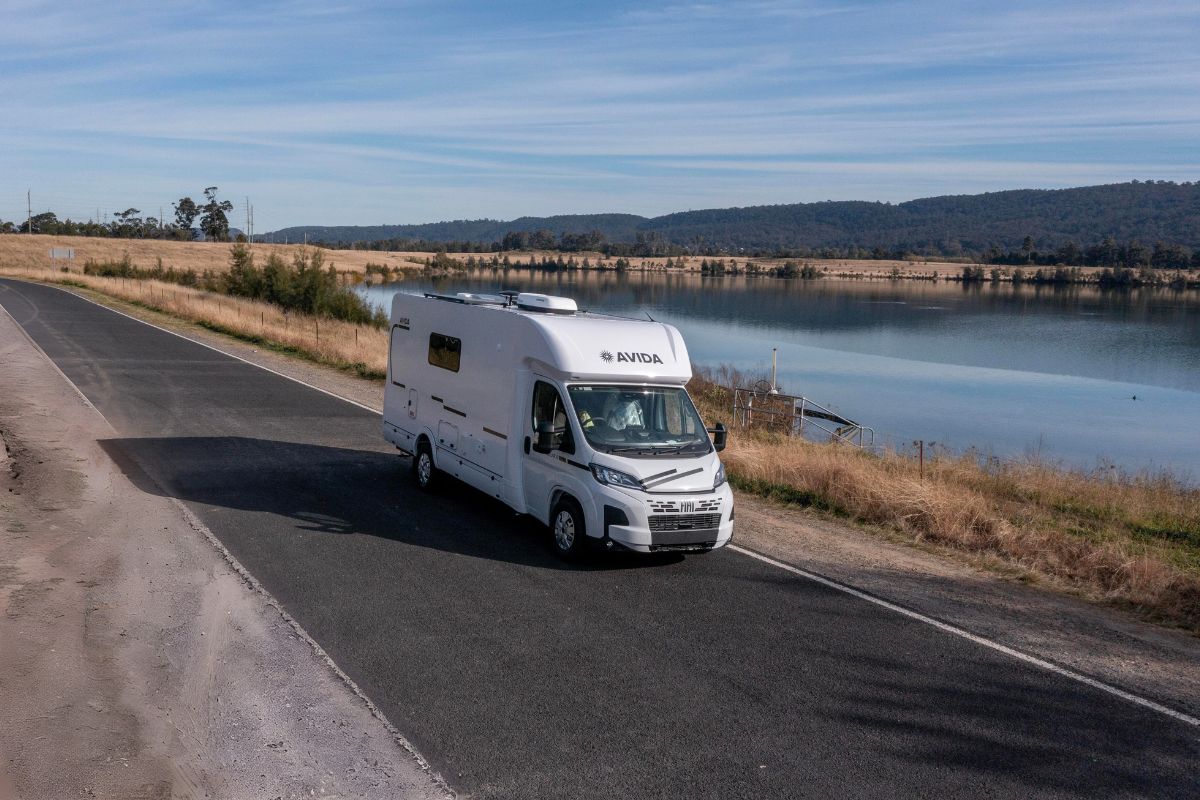

Exterior

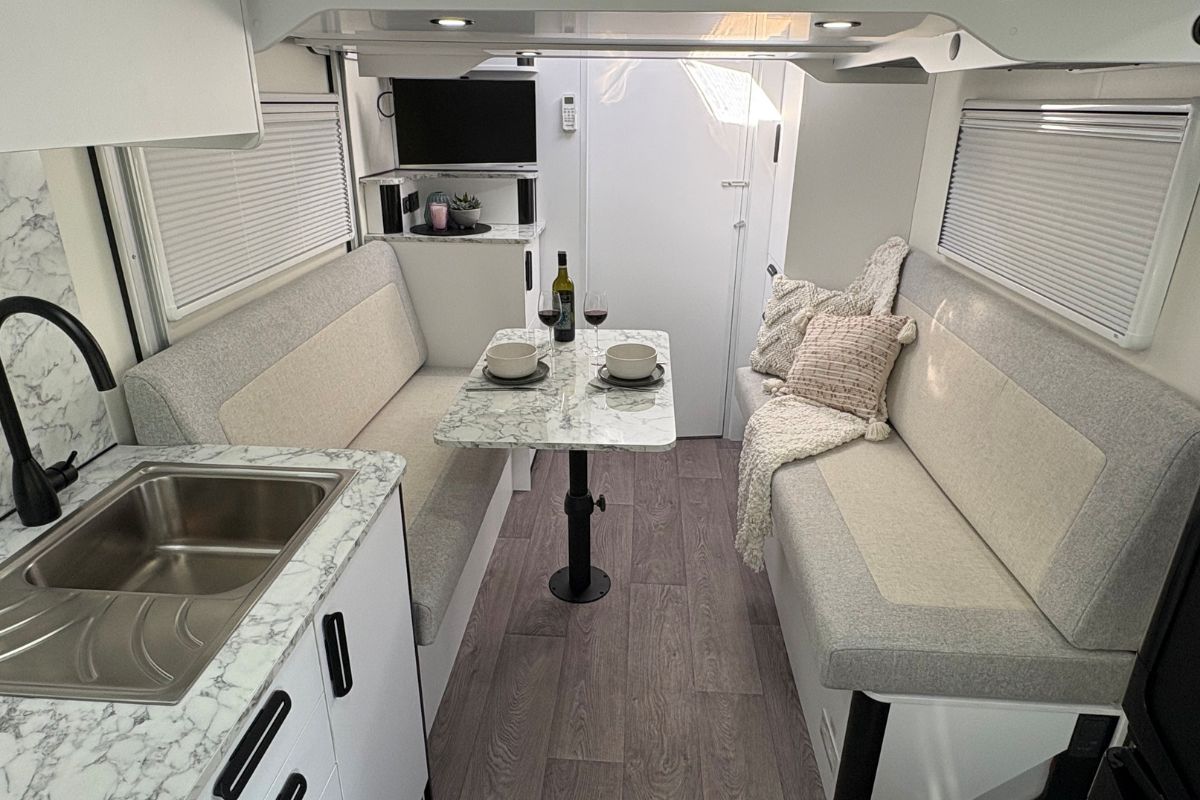

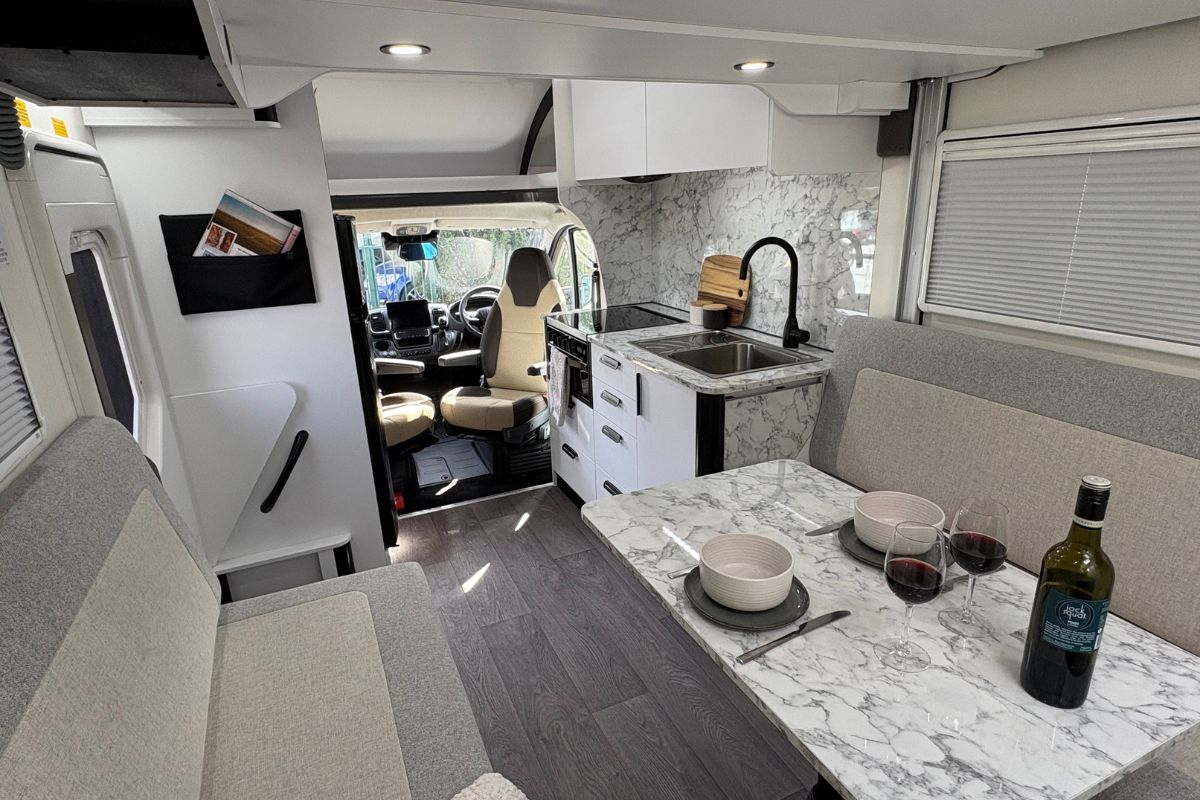

Interior
Exterior
Interior
Exterior
Interior
Interior
Exterior
Interior
**Please read: Due to continuous improvements, photos & videos are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.
Floorplan
Discover The Perfect Layout For Your Travels
The Avida Leura motorhome range features one B Type (storage over cabin) model.
**Please read: Due to continuous improvements, floorplans are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.
Specifications and Features
Designed for Comfort, Built for Adventure
Not only is the Avida Leura affordable, it can be driven on a standard car licence, it is also very compact ensuring any destination is attainable. Built to the exacting standards of Avida RV, nothing has been left out.
The Leura is compact in size, yet filled with plenty of standard features. See the standard inclusions as well as the optional extras available to the Leura motorhome.
| Specification | Leura B 6942 |
|---|---|
| Air Conditioner - Roof mounted | ✓ |
| Alarm system & GPS Vehicle Tracker | Optional |
| Avida's own 12V & 240V integrated distribution control panels & energy management system | ✓ |
| Awning - electric with LED light | Optional |
| Awning - roll out with LED light | ✓ |
| Cooktop - 4 burner with grill (3 gas, 1 electric) | ✓ |
| Fridge / Freezer - AES | ✓ |
| Fridge / Freezer - compressor | Optional |
| Heater - Diesel air heater 2kw | Optional |
| Microwave | ✓ |
| Oven | Optional |
| Radio: Internal - Chassis | ✓ |
| Reverse camera - Dual cameras | ✓ |
| Starlink ready connections | ✓ |
| TV - Smart TV living room | ✓ |
| Washing machine - washer/dryer | Optional |
| Specification | Leura B 6942 |
|---|---|
| Bed - Electric roll down (1370 x 1910mm) | ✓ |
| Cupboards - Handle free overhead & Soft close | ✓ |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Floor - one piece floor | ✓ |
| Hatch - with light | ✓ |
| Hot Water System - 12 volt electric start/gas & 240 volt | ✓ |
| Magazine holder | ✓ |
| Mat - Removable cabin mat - carpet | Optional |
| Privacy screens - windscreen and front doors | ✓ |
| Seating - Lounges & swivel chassis seats | ✓ |
| Shower | ✓ |
| Storage - internal | ✓ |
| Table - adjustable | ✓ |
| Toilet - with cassette | ✓ |
| Towel hooks x 2 | ✓ |
| Wardrobe | ✓ |
| Water filter tap | Optional |
| Window in bathroom | ✓ |
| Windows - double glazed with concertina style blind and fly screen | ✓ |
| Specification | Leura B 6942 |
|---|---|
| Awning light | ✓ |
| BBQ Fitting external | ✓ |
| BBQ Storage | ✓ |
| Entry door - Four point lock & security screen | ✓ |
| Entry door grab handle & light | ✓ |
| Entry step - electric | ✓ |
| Mud flaps - rear wheels | ✓ |
| Shower - external with hot and cold water | Optional |
| Table - fold down external | Optional |
| Walls – External White | ✓ |
| Wheels - Hub caps | ✓ |
| Specification | Leura B 6942 |
|---|---|
| Battery upgrade: 300 Ah battery pack with 20A 240v battery charger and 50A 12v DC/DC charger | Optional |
| Battery: 100 Ah battery with 20A 240v battery charger and 30A 12v DC/DC charger | ✓ |
| CBE Distribution Board | ✓ |
| Inverter upgrade: 300 Ah battery pack, 3000VA 12v Inverter with 120A 240v battery charger and 50A 12 | Optional |
| Lighting - LED & Mood lights | ✓ |
| Lighting - Reading lights with USB & USB-C | ✓ |
| Power point - 240 volt external | ✓ |
| Solar MPPT system with regulator - 420w | ✓ |
| Specification | Leura B 6942 |
|---|---|
| ABS – Antilock braking system | ✓ |
| Advanced emergency braking | ✓ |
| Blind spot assist | ✓ |
| Driver Drowsy Detection | ✓ |
| Earth leakage protector - 240V | ✓ |
| Entry step warning buzzer | ✓ |
| ESP – Electronic stability program control | ✓ |
| Fire extinguisher | ✓ |
| Lane keeping assist | ✓ |
| LP gas leak detector | ✓ |
| Smoke detector | ✓ |
| Traffic Sign recognition & High Beam Recognition | ✓ |
| Specification | Leura B 6942 |
|---|---|
| Chassis | Fiat Ducato 180 HP Auto XLWB G16 S2 |
| Chassis Voltage | 12V |
| Driver's Licence | Standard |
| Electric windows - driver & passenger.. | ✓ |
| Engine | 4-cylinder, Turbo Diesel |
| Engine Displacement | 2184cc |
| Exterior Height | 3060mm |
| Exterior Length | 6885mm |
| Exterior Width | 2340mm |
| Fuel Tank | 90L |
| Fuel Type | Diesel |
| Gross Combined Mass (GCM) | 6500kg |
| Gross Vehicle Mass (GVM) | 4400kg |
| Interior Height | 2015mm |
| Keyless Entry with Push start button | ✓ |
| Power | 132kW @ 3500rpm |
| Torque | 450Nm @ 1500rpm |
| Towing Capacity | 2100kg |
| Transmission | Automatic (8 speed) |
| Type | B-Type (Storage over cabin) |
| Water (Fresh) | 120L |
| Water (Grey) | 120L |
| Wheelbase | 4035mm |
| Wipers - Automatic.. | ✓ |
| Wireless phone charging | ✓ |
| Specification | Leura B 6942 |
|---|---|
| Air conditioning - Automatic climate controlled | ✓ |
| Alloy wheels 16” x 8” (4) | Optional |
| Chassis paint - white | ✓ |
| Drive type: FWD | ✓ |
| Electric mirrors with demist function | ✓ |
| Electric park brake | ✓ |
| GPS Navigation | ✓ |
| GPS Navigation - via Apple CarPlay or Android | ✓ |
| Media system - 10 inch touch screen with Bluetooth | ✓ |
| Steering wheel with height and reach adjustment | ✓ |
| Swivel seats | ✓ |
| Tow bar and wiring - Fiat | Optional |
| Upholstery - Chassis seats - Fabric | ✓ |
| Specification | Leura B 6942 |
|---|---|
| 60 months Capped Price Servicing | ✓ |
| 60 months Roadside Assistance (Chassis) - Limited time | ✓ |
| 60 months Structural Guarantee | ✓ |
| 60 months Warranty (Avida house) - Limited time | ✓ |
| 60 months Warranty (Chassis) - Limited time | ✓ |
| Australian Made | ✓ |
| Compliance - Certified weight certificate | ✓ |
| Compliance - RVMAP-accredited manufacturer | ✓ |
| Facebook support group | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners' personal login page - Experience Hub | ✓ |
| Service Schedule (Avida house) - every 12 months | ✓ |
| Service Schedule (Chassis) - every 12 Months, 20000 km | ✓ |
| Model | B6942 |
|---|---|
| Chassis | Fiat Ducato |
| Type | Storage over cabin |
| Exterior Length | 6885mm |
| Exterior Width | 2340mm |
| Exterior Height | 3060mm |
| Interior Height | 2015mm |
| Fresh Water Capacity | 120ltr |
| Grey Water Capacity | 120ltr |
| Black Water Capacity | 17ltr |
| Hot Water Capacity | 14ltr |
| LP Gas | 2 x 4kg |
| Drive Type | Front wheel drive |
| Engine | 4 cylinder turbo |
| Displacement | 2184cc |
| Power | 132kw (180hp) @ 3500rpm |
| Torque | 450Nm @ 1500rpm |
| Transmission | Automatic |
| Fuel Type | Diesel |
| Fuel Capacity | 90ltr |
| Wheelbase | 4035mm |
| Gross Vehicle Mass | 4400kg |
| Gross Combined Mass | 6500kg |
| Towing Capacity | 2100kg |
| Chassis Voltage | 12 volt |
| Licence Requirement | Standard car licence |
| Australian Made | ✓ |
| Avida’s unique, strong, highly insulated and light weight sandwich panel construction with underfloor protection | ✓ |
| Compliance - Certified weight certificate ex-factory with every vehicle | ✓ |
| Compliance - RVMAP industry accredited manufacturer (look for the accreditation key) | ✓ |
| Facebook support group | ✓ |
| Insulated walls & roof | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners Personal Login Page - Experience Hub | ✓ |
| Roadside Assist - Chassis | 60 months* Limited time |
| Service - Avida house | 60 months Capped Price every 12 months* Limited time (first FREE service at an Avida dealer) |
| Service - Chassis | Every 2-years / 48,000km |
| Structural Guarantee | 60 months |
| Warranty - Avida | 60 months* Limited time |
| Warranty - Chassis | 60 months* Limited time |
| ABS – Antilock braking system | ✓ |
| Adavanced emergency braking | ✓ |
| Air conditioning - Chassis | Automatic climate controlled |
| Apple CarPlay and Android Auto compatible | ✓ |
| Blind spot assist | ✓ |
| Bucket seats – Colour co-ordinated | O |
| Cruise Control | Adaptive |
| Driver Drowsy Detection | ✓ |
| Earth leakage protector - 240V | ✓ |
| Electric mirrors | With demist function |
| Electric park brake | ✓ |
| Electric windows | Driver & passenger |
| Engine immobiliser | ✓ |
| Entry step wanring buzzer | ✓ |
| ESP – Electronic stability program control | ✓ |
| Fire extinguisher | ✓ |
| GPS Navigation | ✓ |
| Keyless Entry with Push start button | ✓ |
| Lane keeping assist | ✓ |
| LP gas leak detector | ✓ |
| Media system | 10 inch touch screen with Bluetooth |
| Reverse camera | O |
| Smoke detector | ✓ |
| Steering wheel with height and reach adjustment | ✓ |
| Swivel seats | ✓ |
| Tinted windows in rear barn door | ✓ |
| Traffic Sign recognition & High Beam Recognition | ✓ |
| Wipers - Automatic | ✓ |
| Wireless phone charging | ✓ |
| Air Conditioner - Roof mounted | ✓ |
| Avida's own 12V & 240V integrated distribution control panels & energy management system | ✓ |
| Bed | Electric roll down bed |
| Cooktop | 4 burner with grill (1 electric & 3 gas) |
| Cupboards - Handle free overhead & Soft close | ✓ |
| Diesel heater | O |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Fridge / Freezer | AES (Opt Compressor) |
| Hatch - Bathroom | with 12v fan |
| Hatch - Roof | ✓ |
| Hot Water System | 12V electric start/gas & 240V |
| Lighting - LED | ✓ |
| Magazine holder | ✓ |
| Microwave | ✓ |
| Privacy screens | Windscreen & front doors |
| Radio - Internal | Chassis |
| Seating | Lounges & swivel chassis seats |
| Separate tap at sink with water filter | O |
| Shower | ✓ |
| Storage - Internal | Under lounges |
| Tank & battery monitor system | ✓ |
| Toilet roll holder | ✓ |
| Toilet with cassette | ✓ |
| Towel hooks x 2 | ✓ |
| TV - Smart TV | ✓ |
| Upholstery | Fabric |
| Upholstery OPTION | Ultra Leather & Leather |
| Wardrobe | ✓ |
| Washing machine | O |
| Windows | Double glazed with concertina style blind and fly screen |
| Awning | Roll Out |
| Awning - Light | ✓ |
| Battery - House battery | AGM - 1 x 100A |
| Battery charger for motorhome battery | 22A |
| Battery OPTION - House battery | Lithium - 2 x 120A |
| BBQ Fitting | O |
| Entry door | Four point lock & security screen |
| Entry door grab handle & light | ✓ |
| Entry step | Manual |
| External table | O |
| Gas Bottles | 2x4kg |
| Inverter - 2,000VA (intergrated) | O |
| Mud flaps | Rear wheels |
| Nudge Bar | O |
| Shower - External with hot and cold water | O |
| Solar - MPPT system with regulator | O |
| Stabilisers OPTION | Electric |
| Tow bar & wiring | O |
| Waste pipes – Large to allow for better flow and minimise blocking – 40mm in diameter | ✓ |
| Wheel Covers | Hub caps |
| Bench tops – Selection to choose from | ✓ |
| Cabinetry – Choice of colours | ✓ |
| Decals – Choice of colours | ✓ |
| Seating - Choice upholstery | ✓ |
| Splashback – Choice of styles & colours | ✓ |
| Walls – External wall colours | ✓ |
**Please read: Due to continuous improvements, specifications & features are subject to change without notice. For more detailed information please contact your nearest dealer.
Compare Our Luxury Motorhomes and Campervans
Leura Motorhome
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Escape Campervan
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Avida’s spacious two pieces swing out the bathroom system.
—
Avida’s own 12V & 240V integrated distribution control panels & energy management system
Combination 2 burner LPG stove with stainless steel sink with glass lid
Electric roll down bed
—
Fridge/freezer – Compressor
Motorhome battery in addition to the chassis battery – 100V 12V
Need Help Choosing Your Next Motorhome?
Australian Owned, Australian Built
The Avida Difference
Experience the Avida Leura motorhome with our industry leading support. Peace of mind with a customer relations team, over 100 accredited service locations and factory trained dealer network.
Unique Construction
Avida’s Unique construction advantages*:
- Light weight sandwich panel
- Dent & hail resistance fibreglass finish
- One piece floor, walls and roof
- Protective sheeting underside
- Highest insulation rating on the market
- Strong enough to walk on the roof
*Excludes campervans
Over 100 Accredited Service Locations
Experience our great service with our factory trained dealer network, over 100 accredited service locations, our internal customer relations team, and a fast spare parts turnaround.
3-year Factory Backed Warranty
Customer support is paramount at Avida and that’s why every new Avida has a very important attribute we simply call “peace of mind” with our market leading 3 year factory backed warranty.
Free Roadside Assistance
Avida Roadside Assistance is provided by the chassis supplier for their 24 hour, seven day a week roadside assistance program to address your needs in the unlikely event of your RV breaking down
5-year Structural Guarantee
Avida offers a structural guarantee on the RV body of each new Avida for a period of 5 years from the date of delivery to the original purchaser as outlined in the Avida owners manual.
Accredited RVMAP Manufacturer
The RVMAP “Accredited” Badge on an RV is the ultimate proof of compliance – only Members who have attained RVMAP Accreditation are entitled to display it. Avida is a proud RVMAP manufacturer.
Chassis
Drivers Licence
Type
Seat Belts
Sleeps
Exterior Length
Exterior Width
Exterior Height
Water – Fresh
Water – Grey
Australian Made
Avida’s unique, strong, highly insulated and light weight sandwich panel construction with underfloor protection
Awning
Battery – House battery
Cooktop
Fridge / Freezer
Gas Bottles
Generator – Programmable energy command with remote start
Inverter – 2,000VA (intergrated)
Solar – MPPT system with regulator
TV – Smart TV
Bed
Shower
Toilet with cassette
Upholstery
Wheels
