Fremantle LX Motorhome
Luxury and Innovation for the Ultimate Journey
Best Selling Motorhome
Fremantle LX Motorhome – Two slide out rooms
4
Light rigid licence
Composite Sandwich Panel
Dual Slide out
x3 Smart TV
Washer/Dryer
X3 Lithium
Solar
48v system
The Avida Fremantle LX motorhome range boasts innovation and luxury throughout, matched with the reliable Iveco 70C-21 E6 chassis.
Two large slide out rooms – increasing your living and bedroom space with the touch of a button.
- Spacious Living with Dual Slide-Outs
- Built on a Reliable Foundation
- Thoughtful Design
"A lovely spacious motorhome, with a lot of thought put into the kitchen layout"
Chris
North Lakes QLD
Gallery
Step Inside and Explore the Fremantle LX Motorhome
Experience the Avida Fremantle LX motorhome with our collection of exterior, interior and lifestyle images and videos.
- All
- Exterior
- Interior

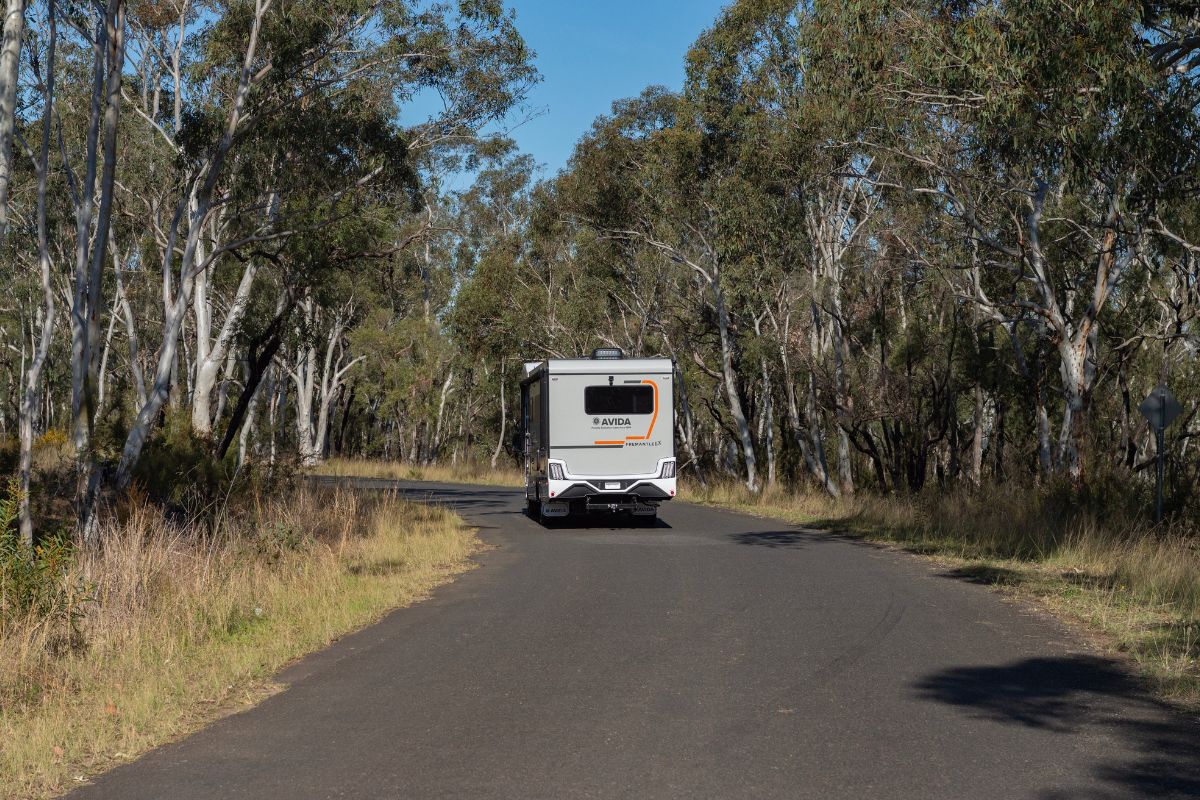

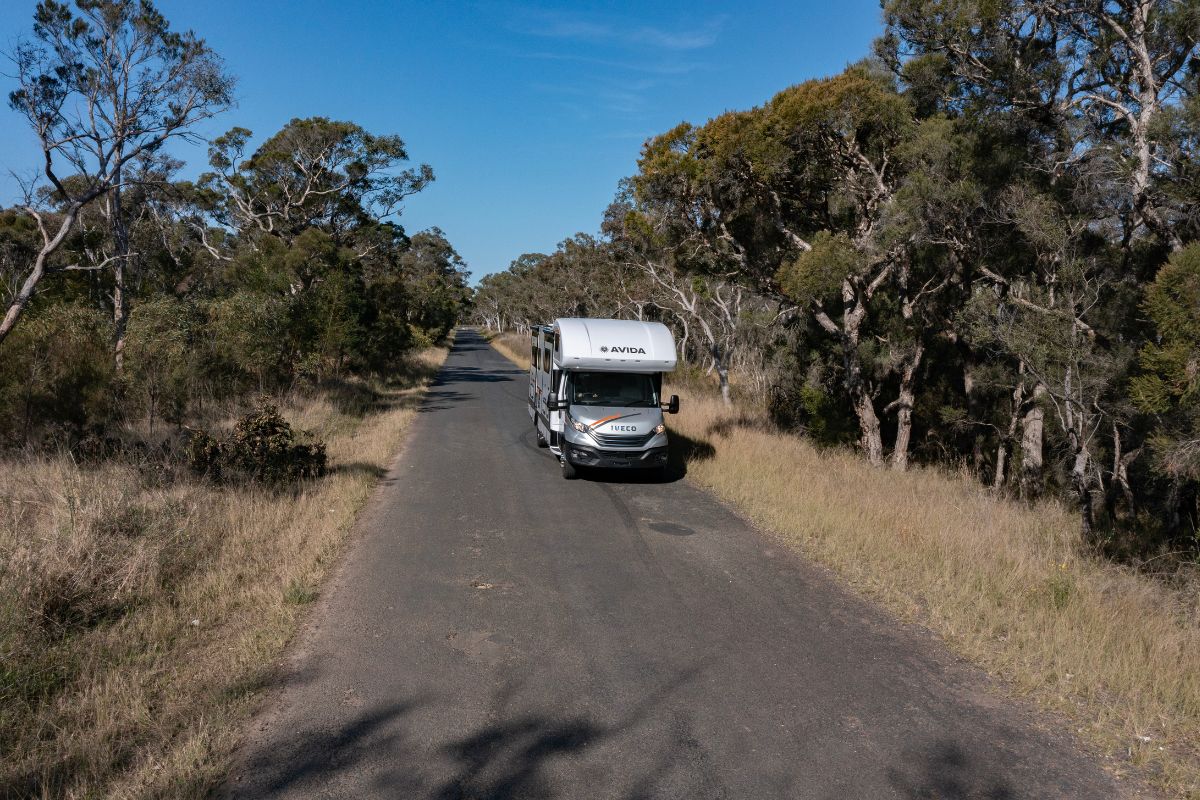

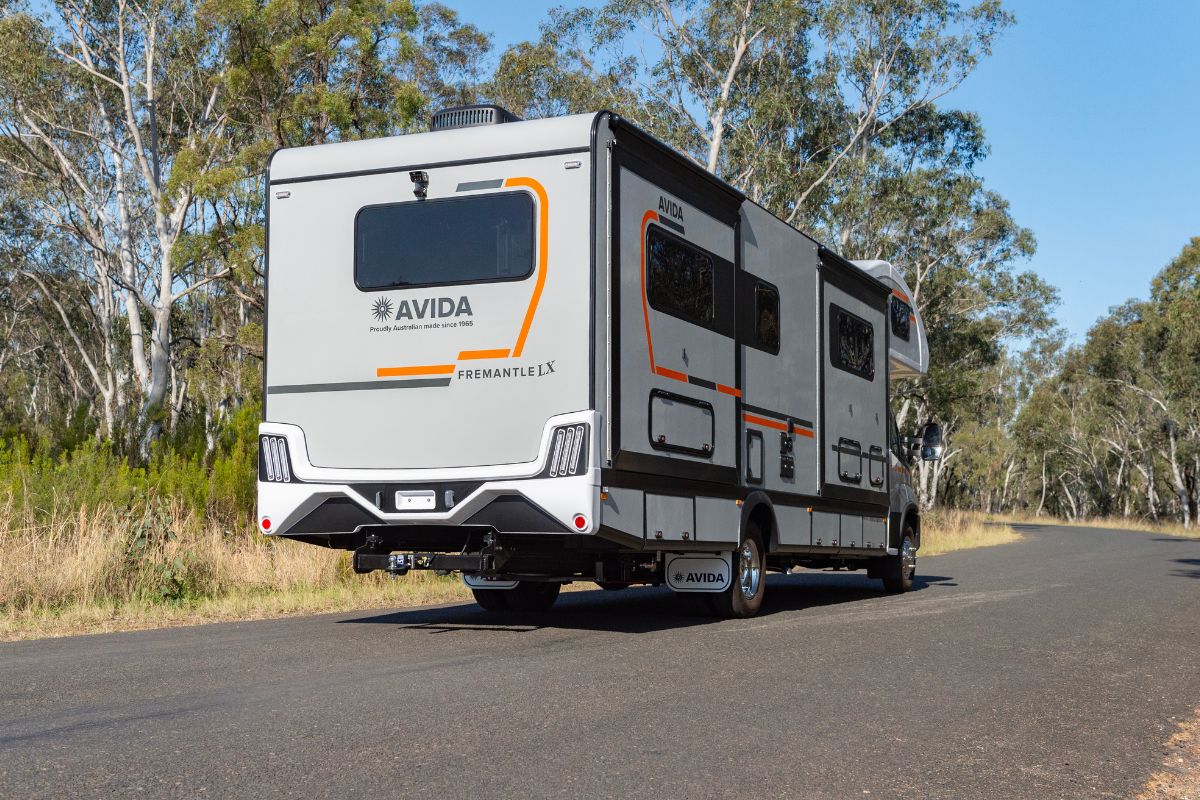

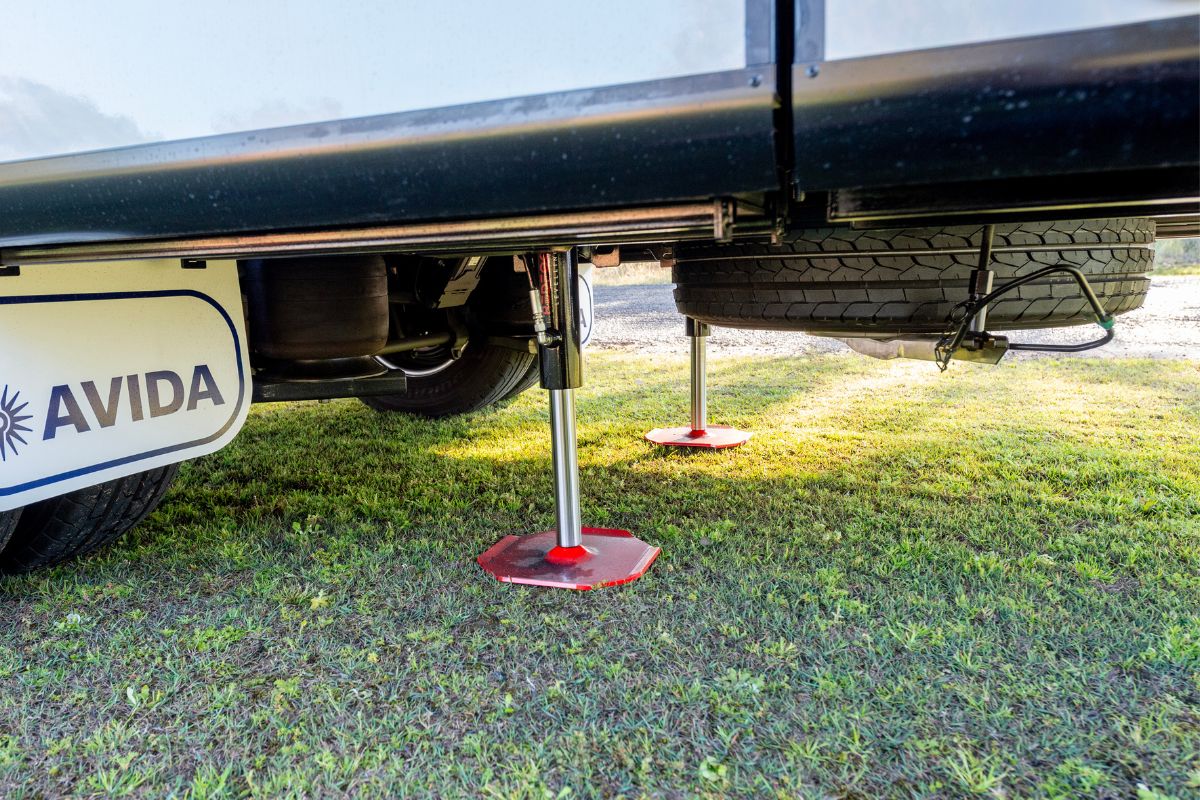

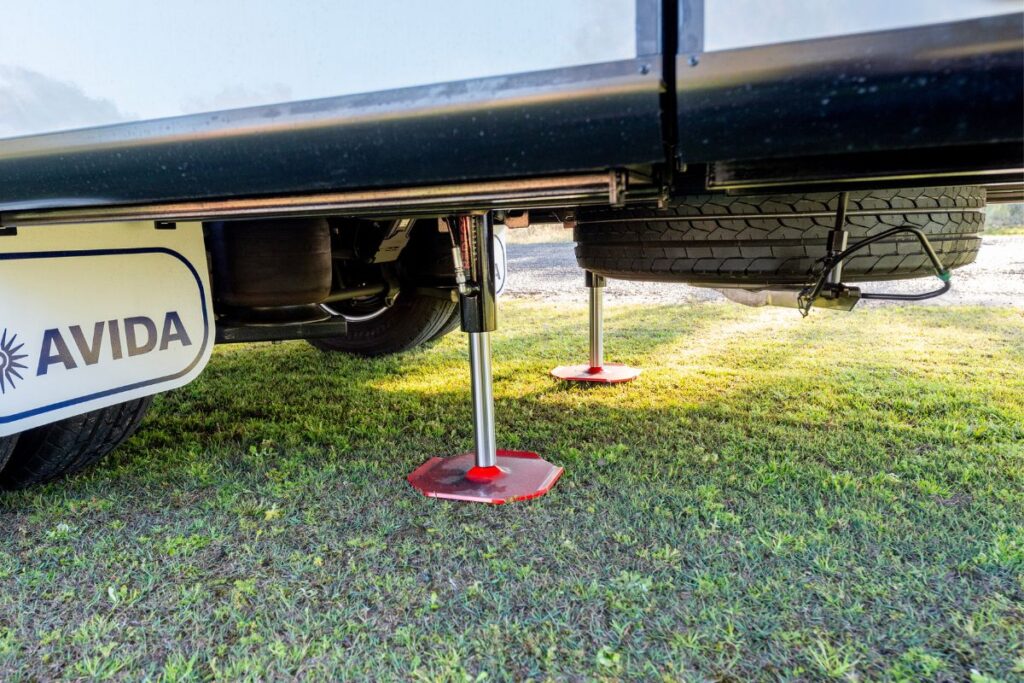

Exterior
Exterior
Exterior

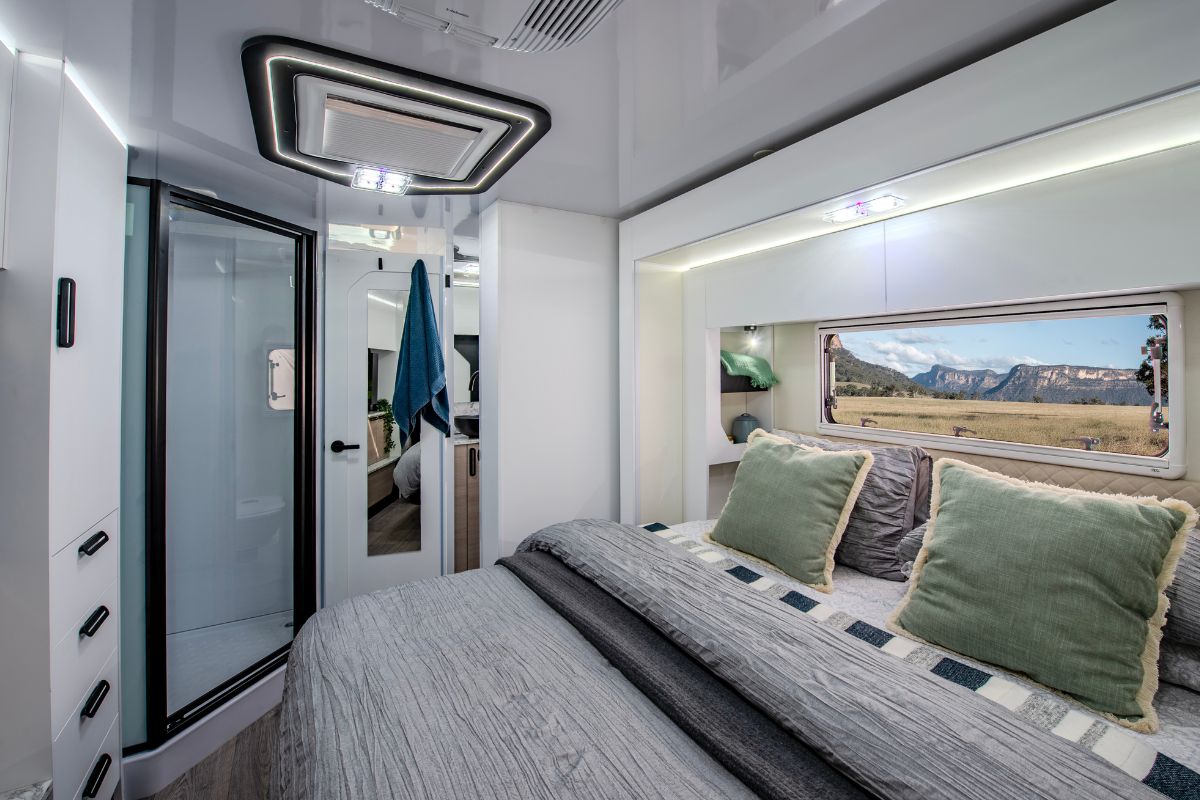

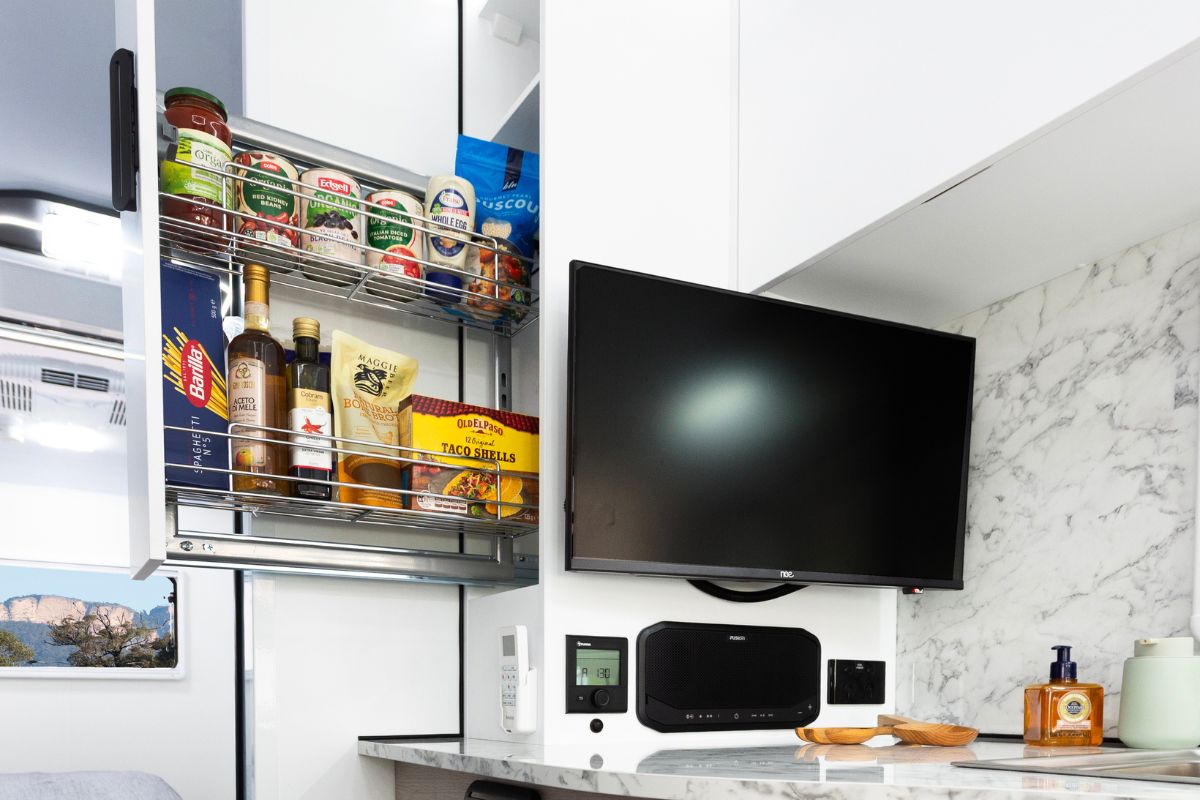

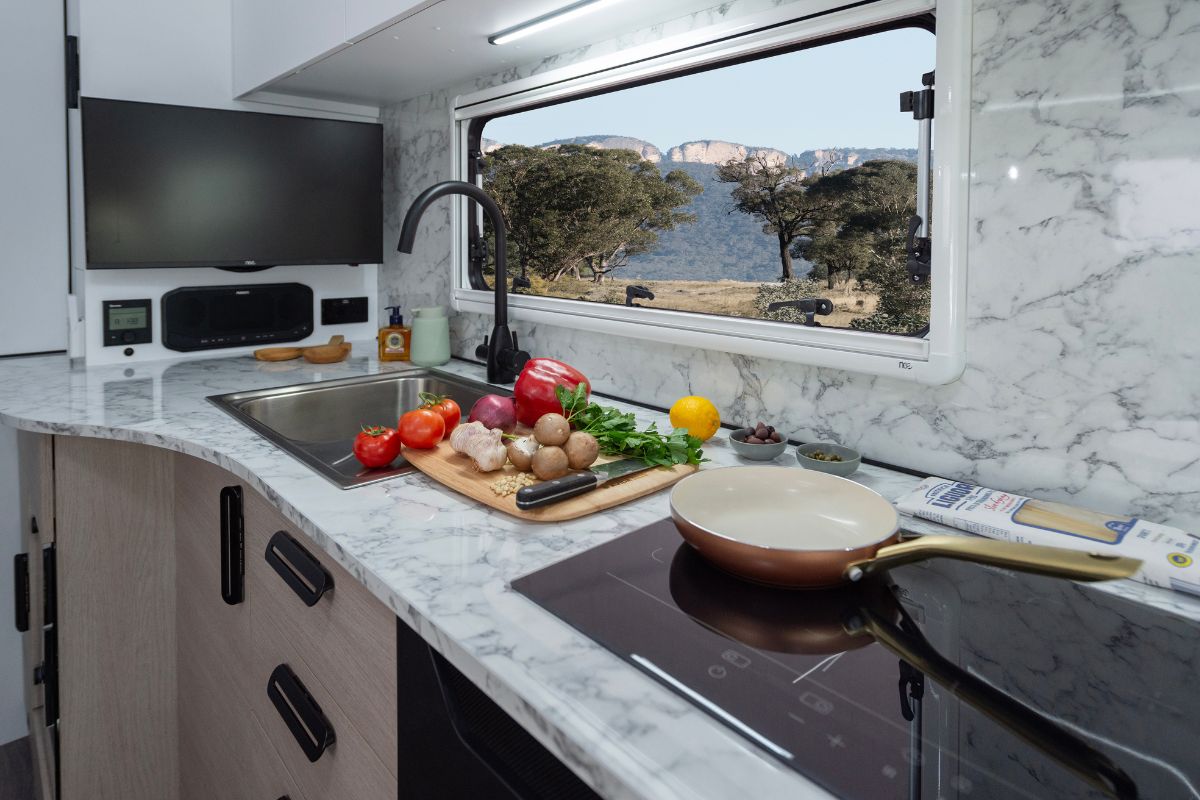

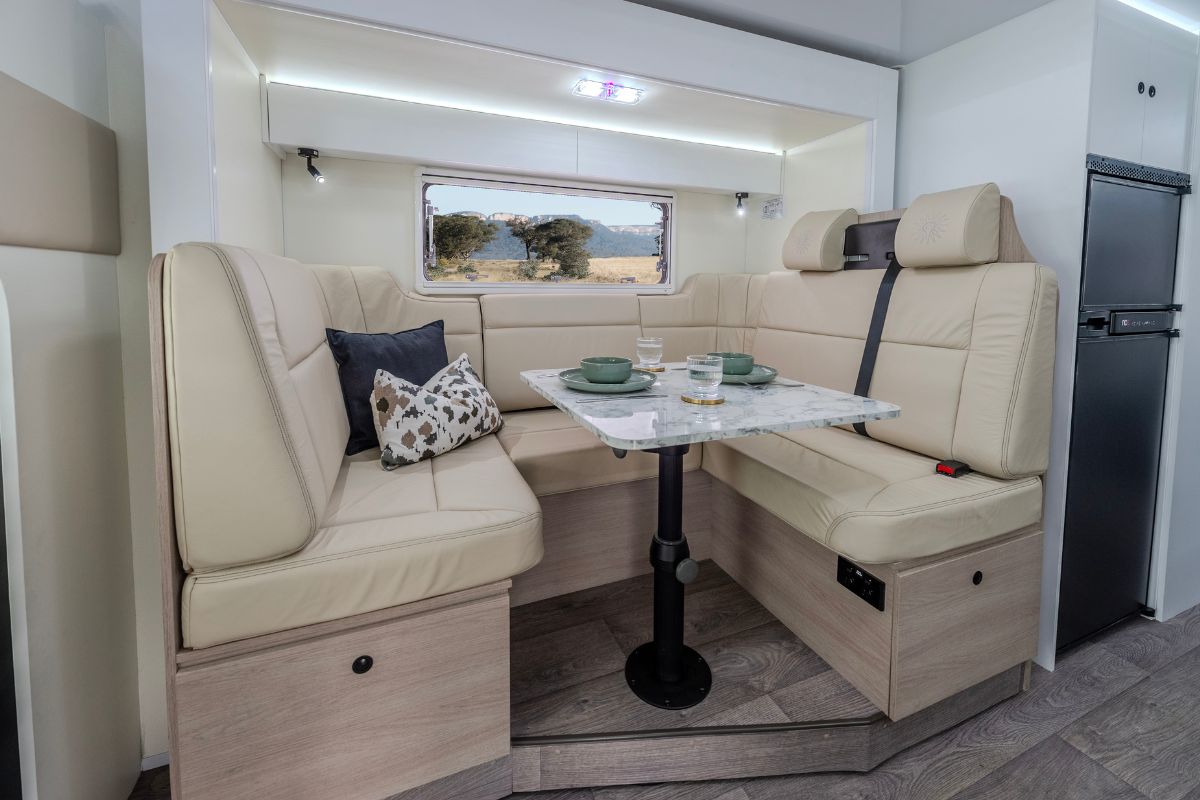

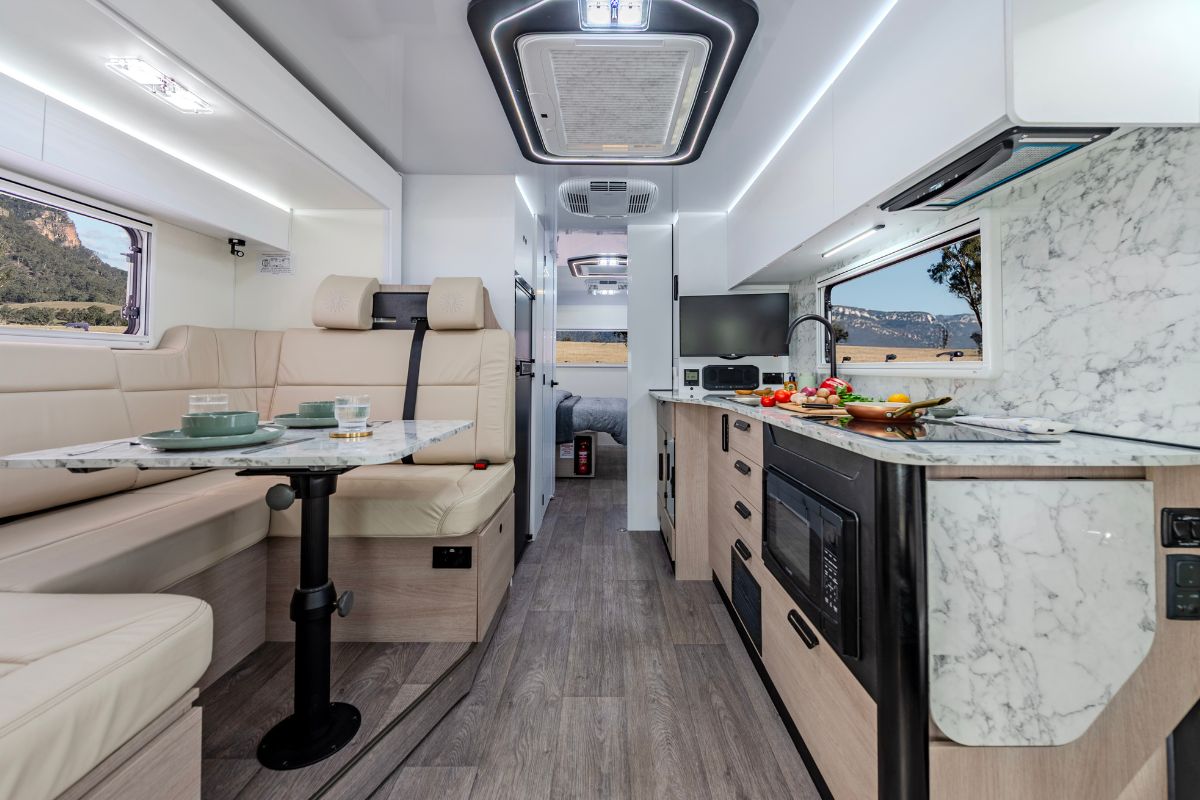

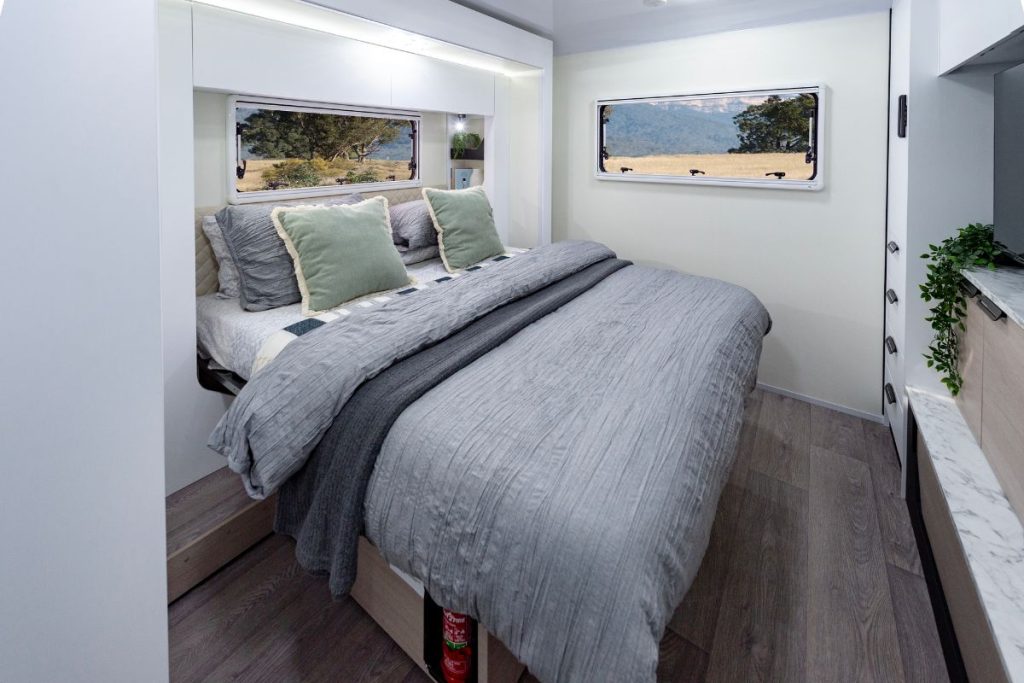

Interior
Interior
Interior
Interior
Interior
Interior
**Please read: Due to continuous improvements, photos & videos are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.

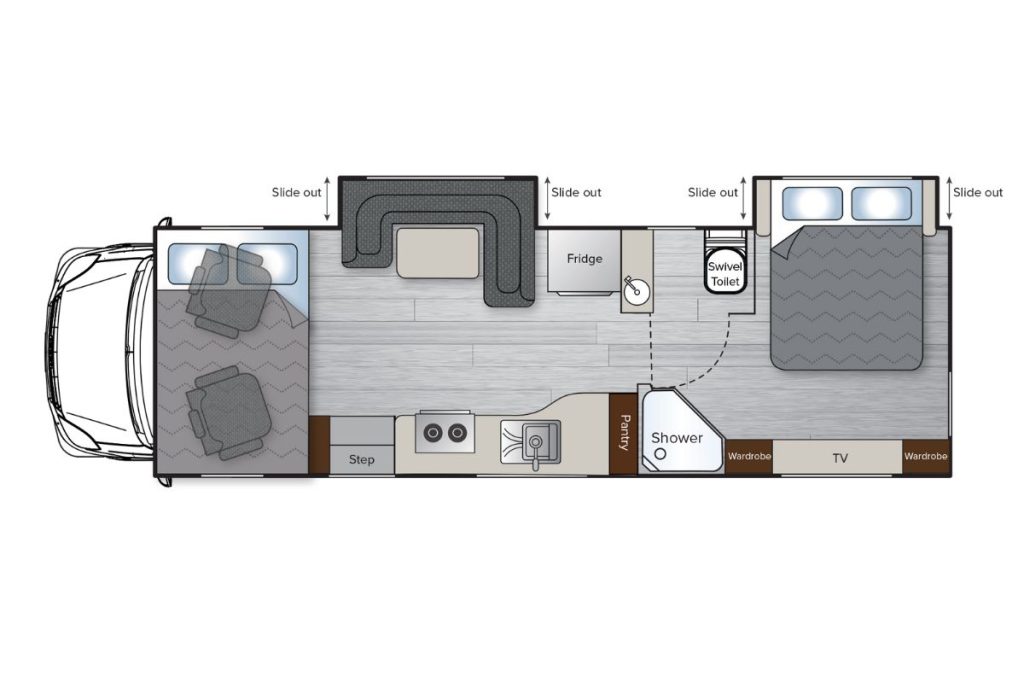

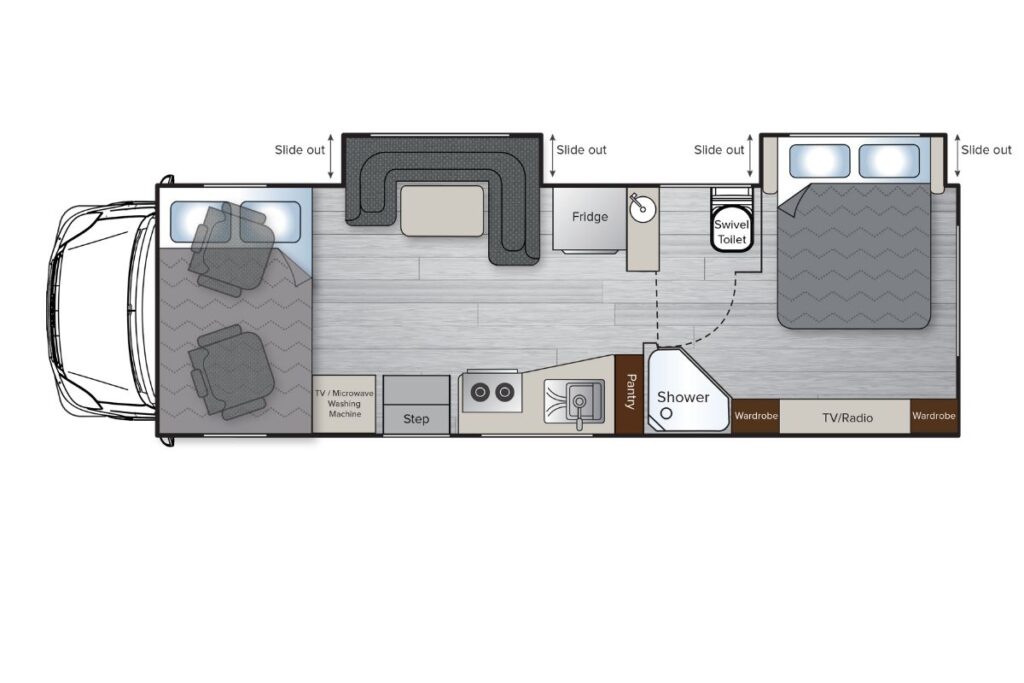

Floorplan
Find Your Space
The Avida Fremantle LX motorhome range currently features one floorplan. The model is available in a C class, and has two slide-out rooms.
**Please read: Due to continuous improvements, floorplans are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.
Specifications and Features
Crafted for Comfort, Built for Adventure
The Fremantle LX motorhome range is innovation and luxury throughout, an abundance of thoughtful features enhance your enjoyment and experience, space to relax and move without restriction.
See what makes the Fremantle LX different to the other motorhomes on the road. Jam packed with plenty of features and optional extras to cater for all lifestyles.
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Air Conditioner - Roof mounted x2 | ✓ |
| Awning - roll out with LED light | ✓ |
| Awning - slide out awning x2 | ✓ |
| Cooktop - induction with 2 position | ✓ |

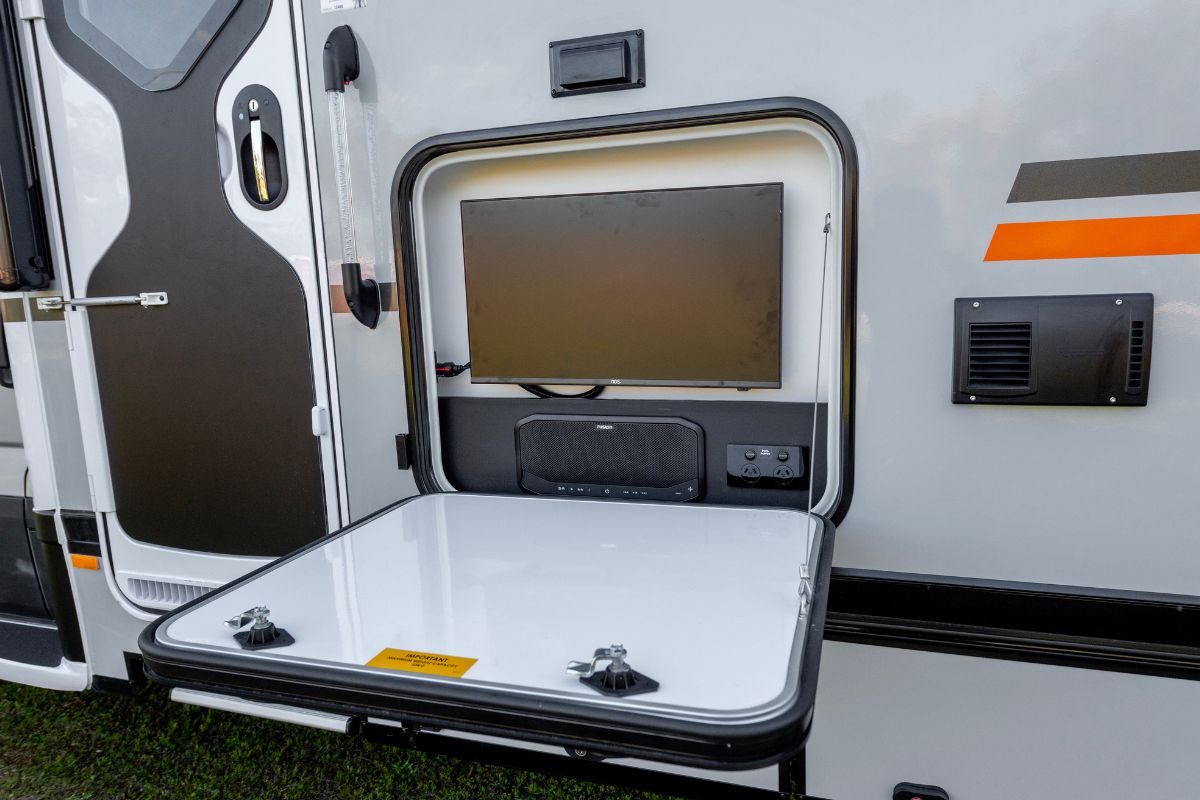

| External entertainment unit with radio, speakers, table, 12V & 240V power & Smart TV | ✓ |
| Fridge / Freezer - 270ltr Compressor | ✓ |
| GPS Vehicle Tracker – RVsecure / LOD (Location On Demand) | ✓ |
| Microwave - multi functional with airfryer, convection oven and grilling | ✓ |
| Next generation Avida 48V Electrical System | ✓ |
| Radio: External - Bluetooth All-In-One Audio | ✓ |
| Radio: Internal - Chassis & Bluetooth All-In-One Audio | ✓ |
| Reverse camera - Dual cameras | ✓ |
| Starlink ready connections | ✓ |
| TV - Smart TV bedroom | ✓ |
| TV - Smart TV external | ✓ |
| TV - Smart TV living room | ✓ |
| Vacuum cleaner - Dyson | ✓ |

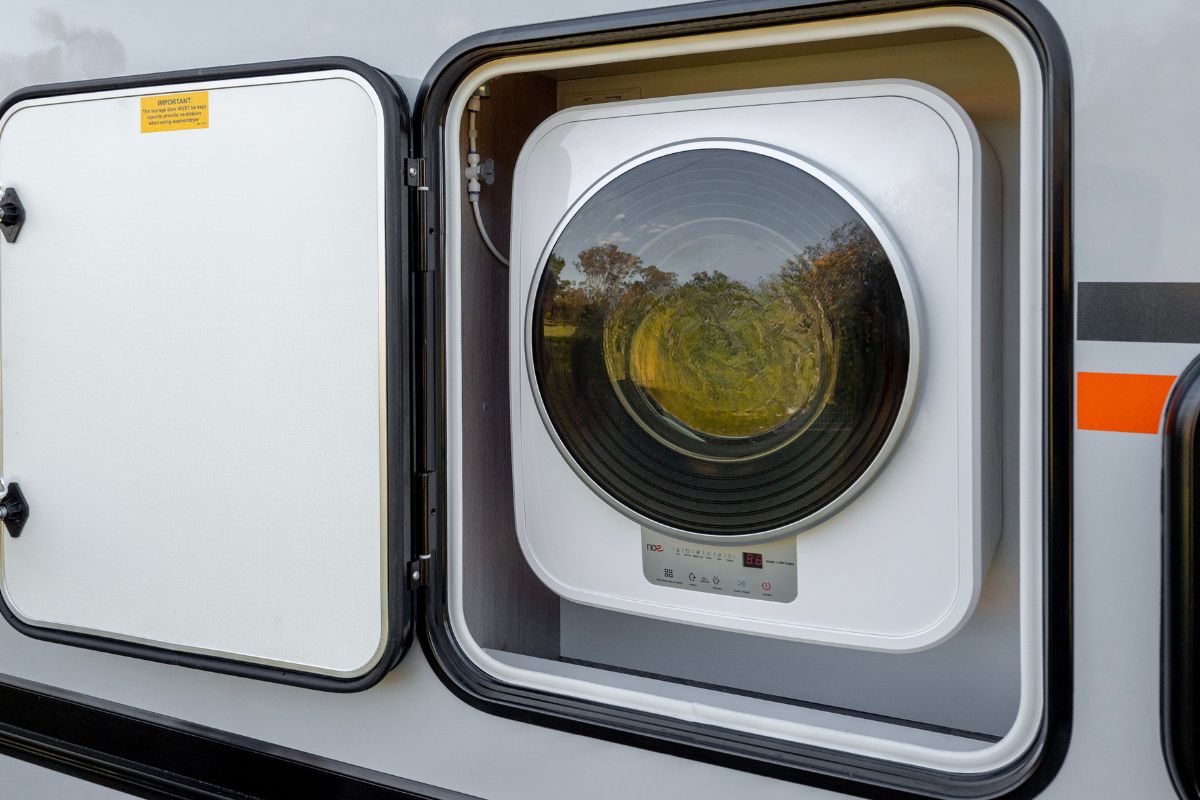

| Washing machine - washer/dryer | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Bed - Island (1530 x 1910mm) and Bed - over cabin (1370 x 1910mm) | ✓ |
| Bedhead - Premium upholstered | ✓ |
| Benchtop extension | ✓ |
| Cupboards - Handle free overhead & Soft close | ✓ |
| Curtains and safety net for bed over cabin | ✓ |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Floor - one piece floor | ✓ |
| Hatch - Bathroom with 12v fan | ✓ |
| Hatch - with feature pelmet & lighting | ✓ |
| Hot Water System - Diesel Combi hot water and air heater | ✓ |
| Ladder for bed over cabin | ✓ |
| Magazine holder | ✓ |
| Mat - Removable cabin mat - carpet | ✓ |
| Pantry x3 | ✓ |
| Privacy screens - windscreen and front doors | ✓ |
| Seating - Club lounge & swivel chassis seats | ✓ |
| Shower | ✓ |
| Slide out - For extra living space x2 | ✓ |
| Storage - internal | ✓ |
| Table - Large dining table | ✓ |
| Toilet - ceramic bowl with cassette | ✓ |
| Towel hooks x 2 | ✓ |
| Upholstery - Leather with embroidered logo | ✓ |
| Wardrobe | ✓ |
| Water filter tap | ✓ |
| Window in bathroom | ✓ |
| Windows - double glazed with concertina style blind and fly screen | ✓ |
| Windows in Luton peak | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Awning light | ✓ |
| BBQ Storage | ✓ |
| Entry door - Four point lock & security screen | ✓ |
| Entry door grab handle & light | ✓ |
| Entry step - electric | ✓ |
| Exterior colour highlights - Black | ✓ |
| Mud flaps - front & rear wheels | ✓ |
| Shower - external with hot and cold water | ✓ |
| Table - Integrated with entertainment unit | ✓ |
| Walls – External Grey | ✓ |
| Walls – External White | Optional |
| Wheels - Dress rims | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Battery shunt | ✓ |
| Lighting - Additional feature LED lighting | ✓ |
| Lighting - LED & Mood lights | ✓ |
| Lighting - Reading lights with USB & USB-C | ✓ |
| Power Generation kit - 10.2kWh battery pack, 5000VA 48v Inverter with 280A 240v battery charger and | ✓ |
| Power point - 240 volt external | ✓ |
| Safiery Star Power | ✓ |
| Solar MPPT system with regulator - 1000w | ✓ |
| Victron Cerbo | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| ABS – Antilock braking system | ✓ |
| Advanced emergency braking | ✓ |
| Earth leakage protector - 240V | ✓ |
| Entry step warning buzzer | ✓ |
| ESP – Electronic stability program control | ✓ |
| Fire extinguisher x2 | ✓ |
| Lane keeping assist | ✓ |
| LP gas leak detector | ✓ |
| Smoke detector | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Chassis | Iveco 70-21 E6 MY22 Auto ULWB Silver-Airbag Susp |
| Chassis Voltage | 12V |
| Driver's Licence | LR |
| Engine | 4-cylinder, Turbo Diesel |
| Engine Displacement | 2998cc |
| Exterior Height | 3230mm |
| Exterior Length | 9200mm |
| Exterior Width | 2455mm |
| Fuel Tank | 100L |
| Fuel Type | Diesel |
| Gross Combined Mass (GCM) | 10500kg |
| Gross Vehicle Mass (GVM) | 7200kg |
| Interior Height | 2015mm |
| Power | 155kW @ 3500rpm |
| Torque | 470Nm @ 1500rpm |
| Towing Capacity | 3500kg |
| Transmission | Automatic (8 speed) |
| Type | C-Type (Bed over cabin) |
| Water (Fresh) | 200L |
| Water (Grey) | 100L |
| Wheelbase | 5100mm |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| Air conditioning - Automatic climate controlled | ✓ |
| Chassis paint - silver | ✓ |
| Drive type: RWD | ✓ |
| Electric mirrors with demist function | ✓ |
| Electric park brake | ✓ |
| GPS Navigation - via Apple CarPlay or Android | ✓ |
| Media system - Hi-Connect multimedia system with Bluetooth | ✓ |
| Steering wheel with height and reach adjustment | ✓ |
| Swivel seats | ✓ |
| Tow bar & wiring - 3500kg | Optional |
| Upholstery - Chassis seats - Avida upholstery | ✓ |
| Wipers - Automatic | ✓ |
| Specification | Fremantle LX C 9234 2SL |
|---|---|
| 60 months Capped Price Servicing | ✓ |
| 60 months Roadside Assistance (Chassis) - Limited time | ✓ |
| 60 months Structural Guarantee | ✓ |
| 60 months Warranty (Avida house) - Limited time | ✓ |
| 60 months Warranty (Chassis) - Limited time | ✓ |
| Australian Made | ✓ |
| Compliance - Certified weight certificate | ✓ |
| Compliance - RVMAP-accredited manufacturer | ✓ |
| Facebook support group | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners' personal login page - Experience Hub | ✓ |
| Service Schedule (Avida house) - every 12 months | ✓ |
| Service Schedule (Chassis) - every 12 Months, 20000 km | ✓ |
| Model | C9234 2SL |
|---|---|
| Chassis | Iveco 70C-21 - Silver with rear air bag suspension |
| Type | Bed over cabin |
| Exterior Length | 9200mm |
| Exterior Width | 2455mm |
| Exterior Height | 3230mm |
| Interior Height | 2015mm |
| Fresh Water Capacity | 200ltr |
| Grey Water Capacity | 100ltr |
| Black Water Capacity | 19ltr |
| Hot Water Capacity | 23ltr |
| LP Gas | 3 x 4kg |
| Drive Type | Rear wheel drive - Dual rear wheels |
| Engine | 4 cylinder turbo |
| Displacement | 2998cc |
| Power | 155kw (210hp) @ 3500 rpm |
| Torque | 470Nm @ 1500 rpm |
| Transmission | Automatic |
| Fuel Type | Diesel |
| Fuel Capacity | 100ltr |
| Wheelbase | 5100mm |
| Gross Vehicle Mass | 7200kg |
| Gross Combined Mass | 10500kg |
| Towing Capacity | 3500kg |
| Chassis Voltage | 12 volt |
| Licence Requirement | Light rigid licence |
| Australian Made | ✓ |
| Avida’s unique, strong, highly insulated and light weight sandwich panel construction with underfloor protection | ✓ |
| Compliance - Certified weight certificate ex-factory with every vehicle | ✓ |
| Compliance - RVMAP industry accredited manufacturer (look for the accreditation key) | ✓ |
| Facebook support group | ✓ |
| Insulated walls & roof | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners Personal Login Page - Experience Hub | ✓ |
| Roadside Assist - Chassis | 60 months* Limited time |
| Service - Avida house | 60 months Capped Price every 12 months* Limited time (first FREE service at an Avida dealer) |
| Service - Chassis | Every 12 months / 50,000km |
| Structural Guarantee | 60 months |
| Warranty - Avida | 60 months* Limited time |
| Warranty - Chassis | 60 months* Limited time |
| ABS – Antilock braking system | ✓ |
| Adavanced emergency braking | |
| ADR approved child restraint | ✓ |
| Air conditioning - Chassis | Automatic climate controlled |
| Apple CarPlay and Android Auto compatible | ✓ |
| Bucket seats – Colour co-ordinated | ✓ |
| Cruise Control | Adaptive |
| Daytime Running Lamps (DRLs) | |
| Earth leakage protector - 240V | ✓ |
| Electric mirrors | With demist function |
| Electric park brake | ✓ |
| Electric windows | Driver & passenger |
| Engine immobiliser | ✓ |
| Entry step wanring buzzer | ✓ |
| ESP – Electronic stability program control | ✓ |
| Fire extinguisher | x2 |
| Fog lights | |
| Keyless Entry with Push start button | ✓ |
| Lane keeping assist | ✓ |
| LP gas leak detector | ✓ |
| Media system | Hi-Connect multimedia system with Bluetooth |
| Metallic paint | ✓ |
| Reverse camera | ✓ |
| Smoke detector | ✓ |
| Steering wheel with height and reach adjustment | ✓ |
| Swivel seats | ✓ |
| Wipers - Automatic | ✓ |
| Air Conditioner - Roof mounted | x2 |
| Avida's own 12V & 240V integrated distribution control panels & energy management system | ✓ |
| Bed | Island |
| Benchtop extension | ✓ |
| Cooktop | 4 burner, grill and oven (1 electric, 3 gas) |
| Cupboards - Handle free overhead & Soft close | ✓ |
| Curtains and safety net for Luton bed | ✓ |
| Lift up bed on gas struts - storage under bed | ✓ |
| Diesel heater | ✓ |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Fridge / Freezer | 216L AES (Opt Compressor) |
| Hatch - Bathroom | with 12v fan |
| Hatch - Roof | Electric with pelmet & lights |
| Hot Water System | Endless Hot Water |
| Ladder for Luton bed | ✓ |
| Lift up bed on gas struts - storage under bed | ✓ |
| Lighting - LED | ✓ |
| Lighting - Mood lights | ✓ |
| Lighting - Reading lights | Dinette & Bed |
| Magazine holder | ✓ |
| Microwave | ✓ |
| Oven | ✓ |
| Pantry | x3 |
| Pop up charging station – USB, 240v, Bluetooth speaker & Phone charger | ✓ |
| Privacy screens | Windscreen & front doors |
| Radio - Internal | Inside motorhome and chassis |
| Seating | Club lounge & swivel chassis seats |
| Separate tap at sink with water filter | ✓ |
| Shower | ✓ |
| Slide out - For extra living space | x2 |
| Storage - Internal | Under bed & club lounge |
| Tank & battery monitor system | ✓ |
| Toilet roll holder | ✓ |
| Toilet with cassette | ✓ |
| Towel hooks x 2 | ✓ |
| TV - Smart TV | x3 (2 Internal & 1 External) |
| Upholstery | Leather |
| Vacuum cleaner | Dyson |
| Wardrobe | ✓ |
| Washing machine | Washer / Dryer (External) |
| Windows | Double glazed with concertina style blind and fly screen |
| Windows in Luton peak | ✓ |
| Wine storage cabinet | ✓ |
| Awning | Roll Out |
| Awning - Light | x2 |
| Awning for slide out | ✓ |
| Battery - House battery | Lithium - 3 x 120A |
| Battery charger for motorhome battery | 120A |
| BBQ Fitting | ✓ |
| Entry door | Four point lock & security screen |
| Entry door grab handle & light | ✓ |
| Entry step | Electric |
| External entertainment unit with radio, speakers, table, 12V & 240V power & Smart TV | ✓ |
| External table | ✓ |
| Gas Bottles | 3x4kg |
| Generator - Programmable energy command with remote start | 3.6kVA |
| Inverter - 3,000VA (integrated) | ✓ |
| Mud flaps | Front & rear wheels |
| Nudge Bar | O |
| Radio - External | Bluetooth All-In-One Audio |
| Satellite - TV receiver system automatic | O |
| Shower - External with hot and cold water | ✓ |
| Solar - MPPT system with regulator | 4 x 170w |
| Stabilisers OPTION | Hydraulic |
| Tow bar & wiring | ✓ |
| Waste pipes – Large to allow for better flow and minimise blocking – 40mm in diameter | ✓ |
| Wheel Covers | Dress rims |
| Bench tops – Selection to choose from | ✓ |
| Cabinetry – Choice of colours | ✓ |
| Decals – Choice of colours | ✓ |
| Seating - Choice upholstery | ✓ |
| Splashback – Choice of styles & colours | ✓ |
| Walls – External wall colours | ✓ |
**Please read: Due to continuous improvements, specifications & features are subject to change without notice. For more detailed information please contact your nearest dealer.
Compare Our Luxury Motorhomes and Campervans
Leura Motorhome
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Escape Campervan
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Avida’s spacious two pieces swing out the bathroom system.
—
Avida’s own 12V & 240V integrated distribution control panels & energy management system
Combination 2 burner LPG stove with stainless steel sink with glass lid
Electric roll down bed
—
Fridge/freezer – Compressor
Motorhome battery in addition to the chassis battery – 100V 12V
Need Help Choosing Your Next Motorhome?
Australian Owned, Australian Built
The Avida Difference
Experience the Avida Fremantle motorhome with our industry leading support. Peace of mind with a customer relations team, over 100 accredited service locations and factory trained dealer network.
Unique Construction
Avida’s Unique construction advantages*:
- Light weight sandwich panel
- Dent & hail resistance fibreglass finish
- One piece floor, walls and roof
- Protective sheeting underside
- Highest insulation rating on the market
- Strong enough to walk on the roof
*Excludes campervans
Over 100 Accredited Service Locations
Experience our great service with our factory trained dealer network, over 100 accredited service locations, our internal customer relations team, and a fast spare parts turnaround.
3-year Factory Backed Warranty
Customer support is paramount at Avida and that’s why every new Avida has a very important attribute we simply call “peace of mind” with our market leading 3 year factory backed warranty.
Free Roadside Assistance
Avida Roadside Assistance is provided by the chassis supplier for their 24 hour, seven day a week roadside assistance program to address your needs in the unlikely event of your RV breaking down
5-year Structural Guarantee
Avida offers a structural guarantee on the RV body of each new Avida for a period of 5 years from the date of delivery to the original purchaser as outlined in the Avida owners manual.
Accredited RVMAP Manufacturer
The RVMAP “Accredited” Badge on an RV is the ultimate proof of compliance – only Members who have attained RVMAP Accreditation are entitled to display it. Avida is a proud RVMAP manufacturer.
