Explorer LX 4x4 Campervan
Off grid adventure vehicle
NEW MODEL
4x4 Campervan
Explorer LX - 4x4 off grid adventure campervan
Sleeps 2
Standard Car Licence
Diesel Heater
No Gas
Induction cooking
Lithium Batteries
Inverter
The Avida Explorer LX 4×4 campervan is off-grid ready with no LPG, a diesel combi hot water system and air heater, a portable induction cooktop, rooftop air conditioning that can be used while off grid. Includes up to 800W MPPT solar. Victron electrical system with integrated 3,000VA inverter, and up to 600amp lithium batteries. The list of standard features goes on and on with a 50” driving light bar, external work lights, leather seating, 360-degree camera, electric sliding door, rear ladder, roof rack, side protection steps, Rear spare wheel carrier, and Tie down points in the rear storage area.
- Off-Grid ready
- Adventure ready
- Packed with features
"The Avida product has had a lot of work put into the build. The end product is fantastic."
Peter
Patonga, NSW
Gallery
Off grid, Adventure ready
Experience the Avida Explorer LX 4×4 campervan with our collection of exterior, interior and lifestyle images and videos.
- All
- Exterior
- Interior
Exterior
Exterior
Exterior
Exterior
Exterior
Interior
Interior
Interior
Interior
**Please read: Due to continuous improvements, photos & videos are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.

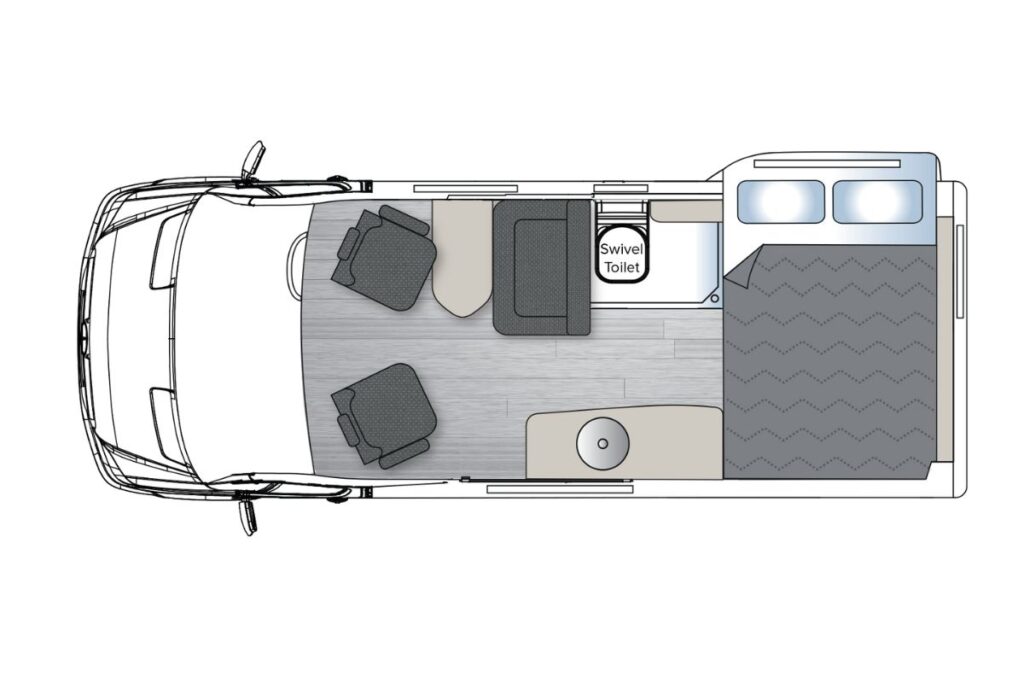

Floorplan
Compact layout, Packed with features
With a drying room, side protection steps, large water tanks, inverter, solar, lithium batteries, A/C, 360-degree camera, 50”LED driving light, electric sliding side door, premium paint, tie down points, and a window in the bathroom, the Explorer LX 4×4 is ready for your next adventure.
**Please read: Due to continuous improvements, floorplans are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.
Specifications and Features
Enjoy your next Adventure Off-Grid
There are no limits with the off-grid 4×4 Explorer LX, whether you are after all the features for an off-grid adventure campervan or all the comforts to relax and enjoy time away, the Explorer LX 4×4 has you covered.
For those looking to experience the great outdoors without compromising on comfort, the Avida Explorer LX 4×4 is an invitation to explore the unknown in luxury.
| Specification | Explorer LX V 5912 |
|---|---|
| Air Conditioner - Roof mounted | ✓ |
| Alarm system & GPS Vehicle Tracker | Optional |
| Awning - electric campervan | Optional |
| Awning - wind out | ✓ |
| Battery upgrade - 600 Ah battery pack, 3000VA 12v Inverter with 120A 240v battery charger and 50A 12 | Optional |
| Cooktop - Portable induction for use indoors & outdoors | ✓ |
| Fridge / Freezer - compressor | ✓ |
| Microwave | ✓ |
| Radio: External - Bluetooth All-In-One Audio | ✓ |
| Radio: Internal - Chassis & Bluetooth All-In-One Audio | ✓ |
| Reverse camera - reverse & 360 degree | ✓ |
| Solar - 2 x solar blankets 200w (additional 400w/ total 800w) | Optional |
| Starlink ready connections | ✓ |
| TV - Smart TV living room | ✓ |
| Specification | Explorer LX V 5912 |
|---|---|
| Bed (1370 x 1910mm) - with entry step & fold up centre for extra storage | ✓ |
| Benchtop extension | ✓ |
| Cupboards - Handle free overhead & Soft close | ✓ |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Fan - Oscillating fan | ✓ |
| Floor - one piece floor | ✓ |
| Hatch - with light | ✓ |
| Hot Water System - Diesel Combi hot water and air heater | ✓ |
| Magazine holder | ✓ |
| Mat - Removable cabin mat - rubber | ✓ |
| Privacy screens - windscreen and front doors | ✓ |
| Seating - Dinette & swivel chassis seats | ✓ |
| Shower | ✓ |
| Table - with swivel table extension | ✓ |
| Tie down points in storage area | ✓ |
| Toilet - ceramic bowl with cassette | ✓ |
| Towel hooks x 2 | ✓ |
| Upholstery - Leather | ✓ |
| Water filter tap | ✓ |
| Window in bathroom | ✓ |
| Windows - double glazed with concertina style blind and fly screen | ✓ |
| Specification | Explorer LX V 5912 |
|---|---|
| Accessory carrier - driver's side rear door | Optional |
| All Terrain tyres 245/75R16 (5) with speedo adjustment. | Optional |
| Awning light | ✓ |
| Bumper bar – Front Adventure | Optional |
| Bumper bar – Front Adventure with warn winch | Optional |
| Driving lights on Adventure bar x 2 | Optional |
| Entry door - rear barn & electric side sliding | ✓ |
| Entry step - side protection steps | ✓ |
| Exterior colour highlights - black | ✓ |
| Flyscreen - Rear door clip on flyscreen | Optional |
| Flyscreen - Side door sliding flyscreen | ✓ |
| Ladder & spare wheel on rear | ✓ |
| Mud flaps - front & rear wheels | ✓ |
| POD - Side POD with window | ✓ |
| Protection - engine guard. | Optional |
| Protection - transmission guard. | Optional |
| Roof rack | ✓ |
| Shower - external with hot and cold water | ✓ |
| Specification | Explorer LX V 5912 |
|---|---|
| Battery management system | ✓ |
| Lighting - 50" Double LED Driving light bar | ✓ |
| Lighting - LED & Mood lights | ✓ |
| Lighting - Reading lights with USB & USB-C | ✓ |
| Lighting - Rear Working light | ✓ |
| Power point - 240 volt external | ✓ |
| Solar MPPT system with regulator - 400w | ✓ |
| Victron 12V & 240V integrated distribution control panels & energy management system | ✓ |
| Victron Cerbo | ✓ |
| Specification | Explorer LX V 5912 |
|---|---|
| ABS – Antilock braking system | ✓ |
| Advanced emergency braking | ✓ |
| Blind spot assist | ✓ |
| Daytime Running Lamps (DRLs) | ✓ |
| Earth leakage protector - 240V | ✓ |
| ESP – Electronic stability program control | ✓ |
| Fire extinguisher | ✓ |
| Lane keeping assist | ✓ |
| Smoke detector | ✓ |
| Traffic Sign recognition & High Beam Recognition | ✓ |
| Specification | Explorer LX V 5912 |
|---|---|
| Chassis | Mercedes Sprinter 419 MWB AWD Van - Blue Grey EPB |
| Chassis Voltage | 12V |
| Driver's Licence | Standard |
| Electric windows - driver & passenger.. | ✓ |
| Engine | 4-cylinder, Turbo Diesel |
| Engine Displacement | 1950cc |
| Exterior Height | 2970mm |
| Exterior Length | 6330mm |
| Exterior Width | 2145mm |
| Fuel Tank | 93L |
| Fuel Type | Diesel |
| GPS Navigation - with 3D map display | ✓ |
| Gross Combined Mass (GCM) | 6100kg |
| Gross Vehicle Mass (GVM) | 4100kg |
| Incorrect fuelling protection system | ✓ |
| Interior Height | 1920mm |
| Keyless Entry with Push start button | ✓ |
| Power | 140kW @ 3800rpm |
| Swivel seats with lumbar support | ✓ |
| Torque | 450Nm @ 1400rpm |
| Towing Capacity | 2000kg |
| Transmission | Automatic (9 speed) |
| Type | Campervan |
| Water (Fresh) | 170L |
| Water (Grey) | 95L |
| Wheelbase | 3655mm |
| Wipers - Automatic.. | ✓ |
| Specification | Explorer LX V 5912 |
|---|---|
| Air conditioning - Automatic climate controlled | ✓ |
| Alloy wheels & All Terrain tyres 245/75R16 (5) with speedo adjustment. | Optional |
| Apple CarPlay and Android Auto compatible | ✓ |
| Chassis paint - Premium blue grey | ✓ |
| Chassis seats - Black leather | ✓ |
| Cruise control with SPEEDTRONIC and variable speed limiter | ✓ |
| Drive type: AWD | ✓ |
| Electric mirrors- heated with wide angle and indicators | ✓ |
| Electric sliding door | ✓ |
| GPS Navigation - via Apple CarPlay or Android | ✓ |
| Mat - Removable cabin mat - rubber | ✓ |
| Media system - 10 inch touch screen with Bluetooth | ✓ |
| Reverse camera - reverse & 360 degree | ✓ |
| Snorkel (engine air intake) | Optional |
| Steering wheel with height and reach adjustment | ✓ |
| Specification | Explorer LX V 5912 |
|---|---|
| 60 months Capped Price Servicing | ✓ |
| 60 months Roadside Assistance (Chassis) - Limited time | ✓ |
| 60 months Structural Guarantee | ✓ |
| 60 months Warranty (Avida house) - Limited time | ✓ |
| 60 months Warranty (Chassis) - Limited time | ✓ |
| Australian Made | ✓ |
| Compliance - Certified weight certificate | ✓ |
| Compliance - RVMAP-accredited manufacturer | ✓ |
| Facebook support group | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners' personal login page - Experience Hub | ✓ |
| Service Schedule (Avida house) - every 12 months | ✓ |
| Service Schedule (Chassis) - every 12 Months, 30000 km | ✓ |
| Chassis | AWD Mercedes Sprinter MWB |
| Chassis Voltage | 12 volt |
| Drivers Licence | Standard car licence |
| Drive | All wheel drive |
| Engine | 4-cylinder 2 stage turbo |
| Engine Displacement | 1950cc |
| Fuel Type | Diesel |
| Power | 140kw @ 3800rpm |
| Torque | 450Nm @ 1400-2400rpm |
| Transmission | Automatic |
| Exterior Length | 6330mm |
| Exterior Width | 2145mm |
| Exterior Height | 2970mm |
| Interior Height | 1920mm |
| Wheelbase | 3655mm |
| Fuel Tank | 93lt |
| Gross Combined Mass | 6100kg |
| Gross Vehicle Mass | 4100kg |
| Seat Belts | 2 (opt 4) |
| Sleeps | 2 |
| Towing Capacity | 2000kg |
| Water - Black (Toilet) | 19ltr |
| Water - Fresh | 170ltr (125ltr Fresh, 45L Drinking) |
| Water - Grey | 95ltr |
| Australian Made | ✓ |
| Compliance - Certified weight certificate | ✓ |
| Compliance - RVMAP industry accredited manufacturer (look for the accreditation key) | ✓ |
| Facebook support group | ✓ |
| Insulated walls & roof | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners Personal Login Page - Experience Hub | ✓ |
| Roadside Assist - Chassis | 5-Years / 250,000km |
| Service - Avida house | Every 6 months (first FREE service at Avida dealer) |
| Service - Chassis | Every 2-years / 40,000km |
| Structural Guarantee | 5-Years |
| Warranty - Avida | 3-Years |
| Warranty - Chassis | 5-Years / 250,000km |
| ABS – Antilock braking system | ✓ |
| ADR approved child restraint | O |
| Advanced emergency braking | ✓ |
| Blind spot assist | ✓ |
| Daytime Running Lamps (DRLs) | ✓ |
| Earth leakage protector - 240V | ✓ |
| ESP – Electronic stability program control | ✓ |
| Fire extinguisher | ✓ |
| Lane keeping assist | ✓ |
| Smoke detector | ✓ |
| Traffic Sign recognition & High Beam Recognition | ✓ |
| Air conditioning | Automatic climate controlled |
| Apple CarPlay and Android Auto compatible | ✓ |
| Chassis paint | Premium blue grey |
| Cruise Control | SPEEDTRONIC and variable speed limiter |
| Electric mirrors | Heated with wide angle and indicators |
| Electric sliding door | ✓ |
| Electric windows | Driver & passenger |
| GPS Navigation | With 3D map display |
| Incorrect fuelling protection system | ✓ |
| Keyless Entry with Push start button | ✓ |
| Media system | MBUX 10.25 inch multimedia touch screen system with Bluetooth |
| Seats - Chassis seats | Black leather |
| Steering wheel with height and reach adjustment | ✓ |
| Swivel seats | With lumbar support |
| Tinted window/s in rear barn door | ✓ |
| Wipers - Automatic | ✓ |
| Air Conditioner - Roof mounted | ✓ |
| Air heater - Diesel | Combi Hot water and Diesel heater |
| Awning | Wind Out |
| Bathroom - shower & toilet with large mirror, deep shelving, cupboards, and window | ✓ |
| Battery - House battery | Lithium - 2 x 200A (Opt 3 x 200A) |
| Battery Management - Victron 12V & 240V energy management system | ✓ |
| Cooktop | Portable induction for use indoors & outdoors |
| Drying room in Bathroom | ✓ |
| Entry step | Side protection steps |
| Flyscreen - Side door | Sliding flyscreen |
| Fridge / Freezer | Slimline Compressor |
| Inverter - 3,000VA (integrated) | ✓ |
| Ladder & Spare wheel on rear | ✓ |
| Lighting - 2 x Rear Working lights | ✓ |
| Lighting - 50"" Double LED Driving light bar | ✓ |
| Microwave | ✓ |
| Oscillating Fan | ✓ |
| Radio - Internal | Chassis & Bluetooth All-In-One Audio |
| Reverse camera | Reverse & 360 |
| Roof Rack | ✓ |
| Solar - MPPT system with regulator | 400w (Opt 2 x 200w blankets - total 800w) |
| Starlink ready connections | ✓ |
| Tie down points in storage area | ✓ |
| TV - Smart TV | ✓ |
| Upholstery | Leather |
| Anderson plug – RED (wired to DC charger/regulator for portable solar) | ✓ |
| Anderson plug – Grey (power in/out to battery) | ✓ |
| Battery charger for motorhome battery | 120A |
| Bed | with entry step & fold up centre for extra storage |
| Benchtop extension | Fold up bench with mood lighting |
| Cupboards - Handle free overhead & Soft close | ✓ |
| DC to DC Battery Charger | 50A |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Floor - One piece floor | ✓ |
| Hatch - Bathroom | with light |
| Hot Water System | Combi Hot water and heater |
| Lighting | LED & Mood lights |
| Lighting - Reading lights at bed | with USB & USB-C |
| Mat - Removable cabin mat | Rubber |
| Oscillating Fan | ✓ |
| Power coated aluminium corner protection for cabinetry joins | ✓ |
| Powerpoints - Doubles in kitchen, living and bedroom | ✓ |
| Privacy screens | Windscreen & front doors |
| Seating | Dinette & swivel chassis seats |
| Shower | ✓ |
| Storage - Internal | with cargo nets & rear door pockets |
| Table | with swivel table for additional guests |
| Toilet with cassette | ✓ |
| Towel hooks x 2 | ✓ |
| Drinking water filter system | ✓ |
| Windows | Double glazed with concertina style blind and fly screen |
| 12v power outlets (CIG and USB) inside and (CIG) outside | ✓ |
| 240volt external power point | ✓ |
| Awning - Light | ✓ |
| Bar - Bull bar / Adventure bar | O |
| Entry door | Rear barn & Electric side sliding |
| Flyscreen - Rear door | O - Clip on |
| Lighting - 2 x Front driving lights on adventure bar | O |
| Mud flaps | Front & rear wheels |
| POD - Side POD with window | ✓ |
| Radio - External | Access from Bluetooth All-In-One Audio |
| Shower - with hot and cold water | ✓ |
| Snorkel | O |
| Table | Adjustable table integrated with light |
| Waste pipes – Large to allow for better flow and minimise blocking | ✓ |
| Wheels | O - 5 x Alloys with 245/75R16 A/T tyres |
| Winch | O |
| Benchtop | ✓ |
| Cabinetry | Upper & Lower |
| Decals external | ✓ |
| Upholstery - Fabric, Ultra Leather, or Leather | ✓ |
**Please read: Due to continuous improvements, specifications & features are subject to change without notice. For more detailed information please contact your nearest dealer.
Compare Our Luxury Motorhomes and Campervans
Escape Campervan
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Diversion Campervan
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Avida’s spacious two pieces swing out the bathroom system.
—
Avida’s own 12V & 240V integrated distribution control panels & energy management system
Combination 2 burner LPG stove with stainless steel sink with glass lid
Electric roll down bed
—
Fridge/freezer – Compressor
Motorhome battery in addition to the chassis battery – 100V 12V
Need Help Choosing Your Next Campervan?
Australian Owned, Australian Built
The Avida Difference
Experience the Avida Explorer LX campervan with our industry leading support. Peace of mind with a customer relations team, over 100 accredited service locations and factory trained dealer network.
Over 100 Accredited Service Locations
Experience our great service with our factory trained dealer network, over 100 accredited service locations, our internal customer relations team, and a fast spare parts turnaround.
3-year Factory Backed Warranty
Customer support is paramount at Avida and that’s why every new Avida has a very important attribute we simply call “peace of mind” with our market leading 3 year factory backed warranty.
Free Roadside Assistance
Avida Roadside Assistance is provided by the chassis supplier for their 24 hour, seven day a week roadside assistance program to address your needs in the unlikely event of your RV breaking down
Accredited RVMAP Manufacturer
The RVMAP “Accredited” Badge on an RV is the ultimate proof of compliance – only Members who have attained RVMAP Accreditation are entitled to display it. Avida is a proud RVMAP manufacturer.
