Diversion LX Campervan
The perfect blend of luxury and mobility, crafted for those who seek adventure without compromising on comfort.
NEW MY25 MODEL AVAILABLE
Luxury Campervan
Diversion LX Campervan – 2WD or AWD
Sleeps 2
Standard Car Licence
2000 kg
Smart TV
6970mm
Traverse the great outdoors in style, in the Avida Diversion LX campervan.
The Avida Diversion LX campervan is a luxury campervan, built on the Mercedes Benz chassis. Fully self-contained, nothing more you will need to live the Avida dream.
- Luxury Meets Practicality
- Drive with Ease
- Fully Self-Contained
“Well set out internally and quality built fittings in an easy to drive vehicle.”
Brian & Robyn
Avalon Beach NSW
Gallery
Discover The Diversion LX Campervan
Experience the Avida Diversion LX luxury campervan with our collection of exterior, interior and lifestyle images and videos.
- All
- Exterior
- Interior

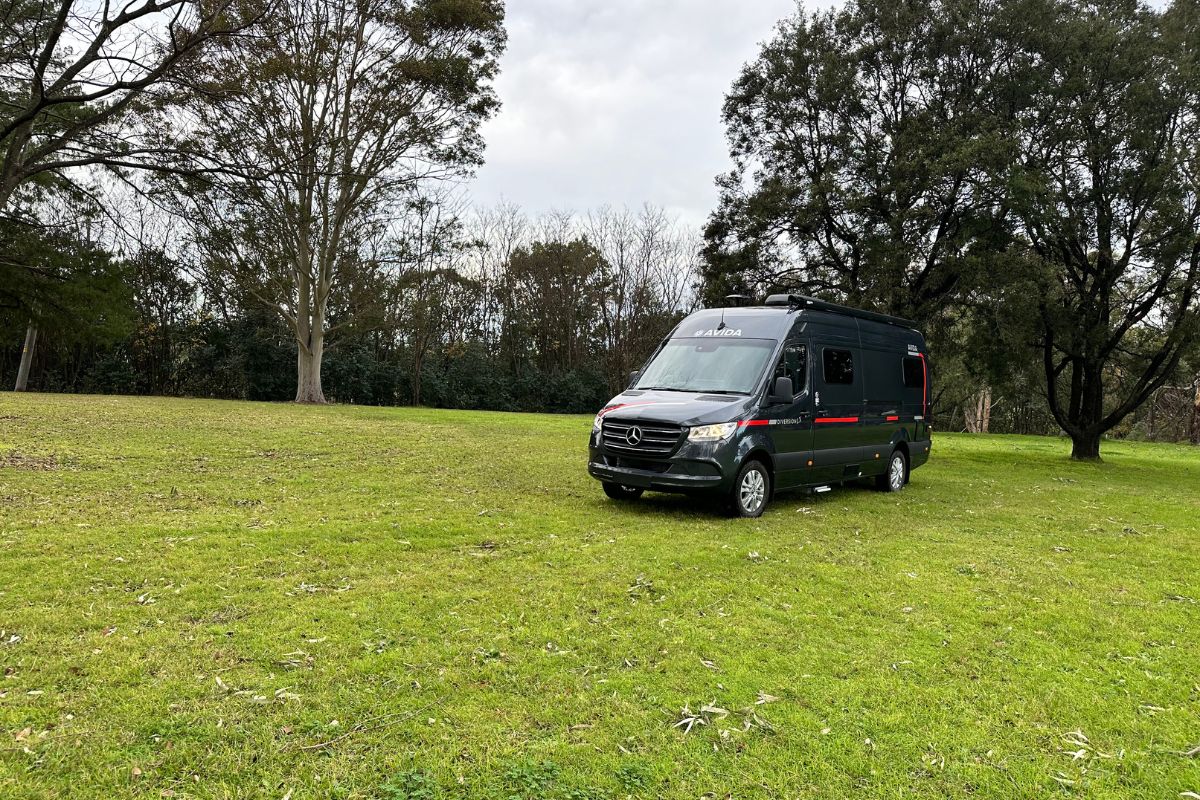

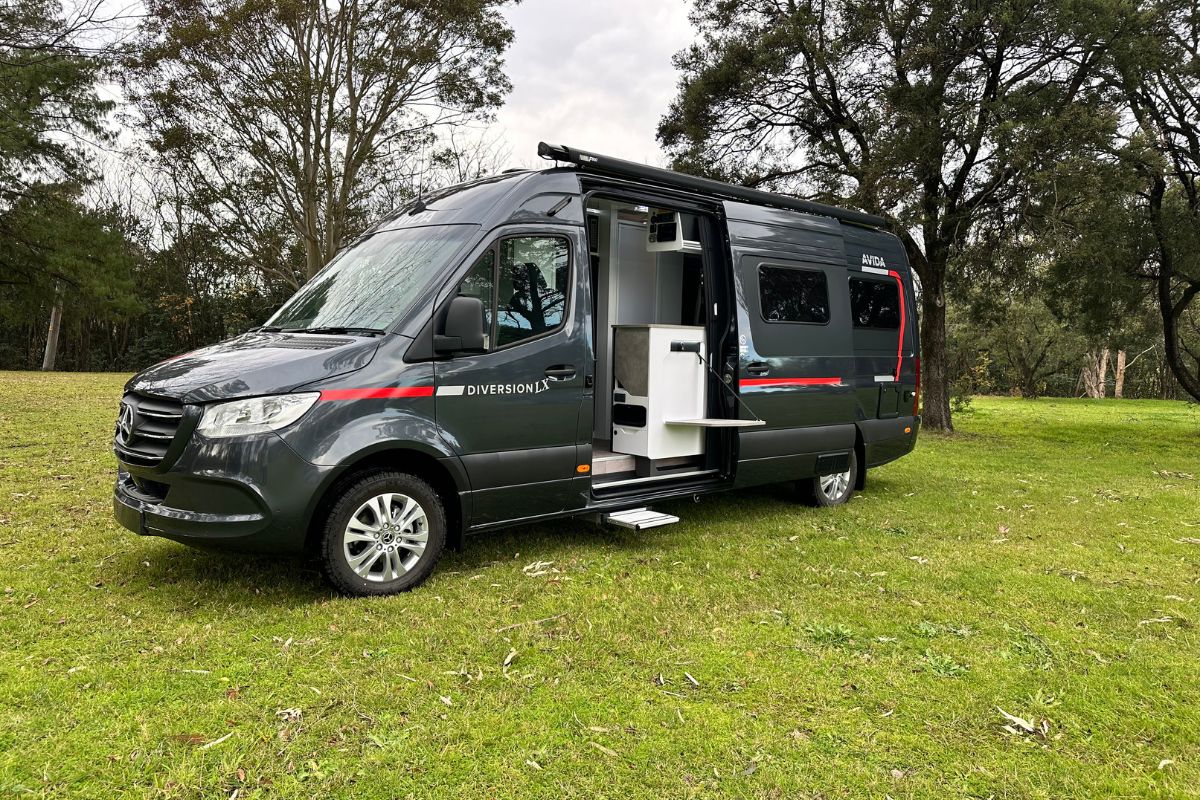

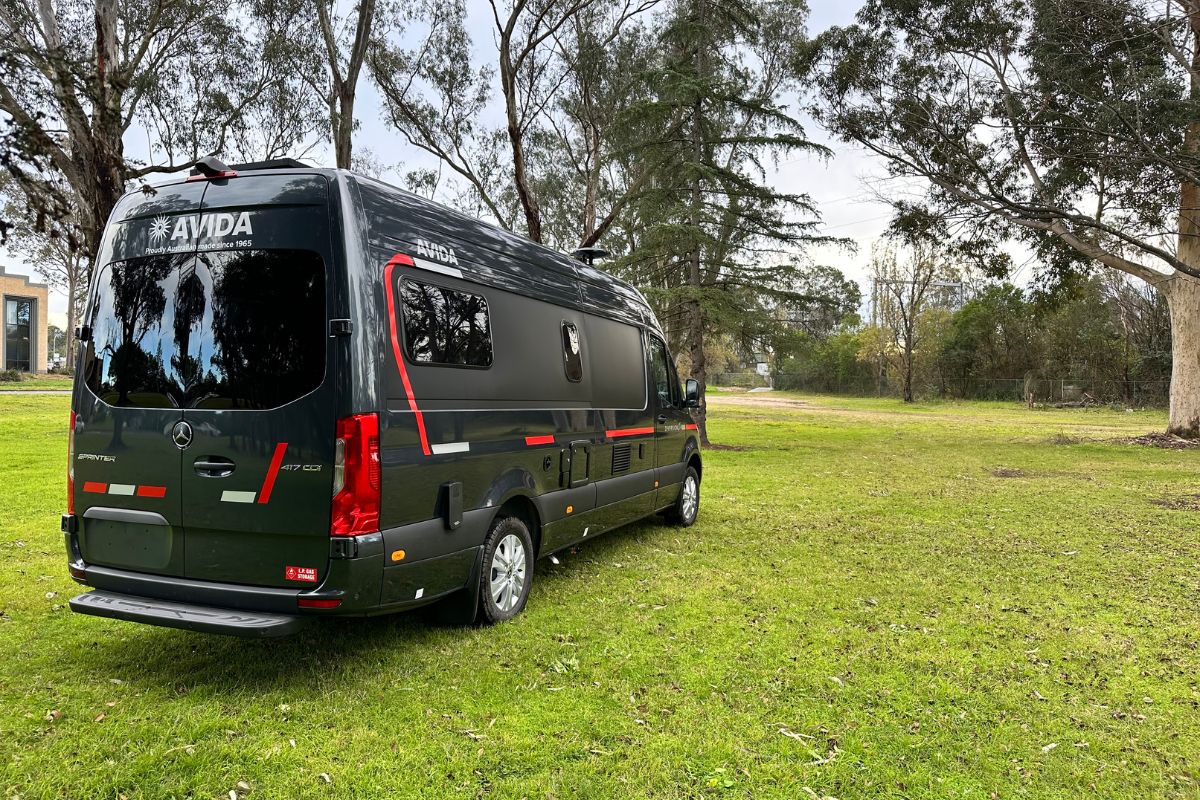

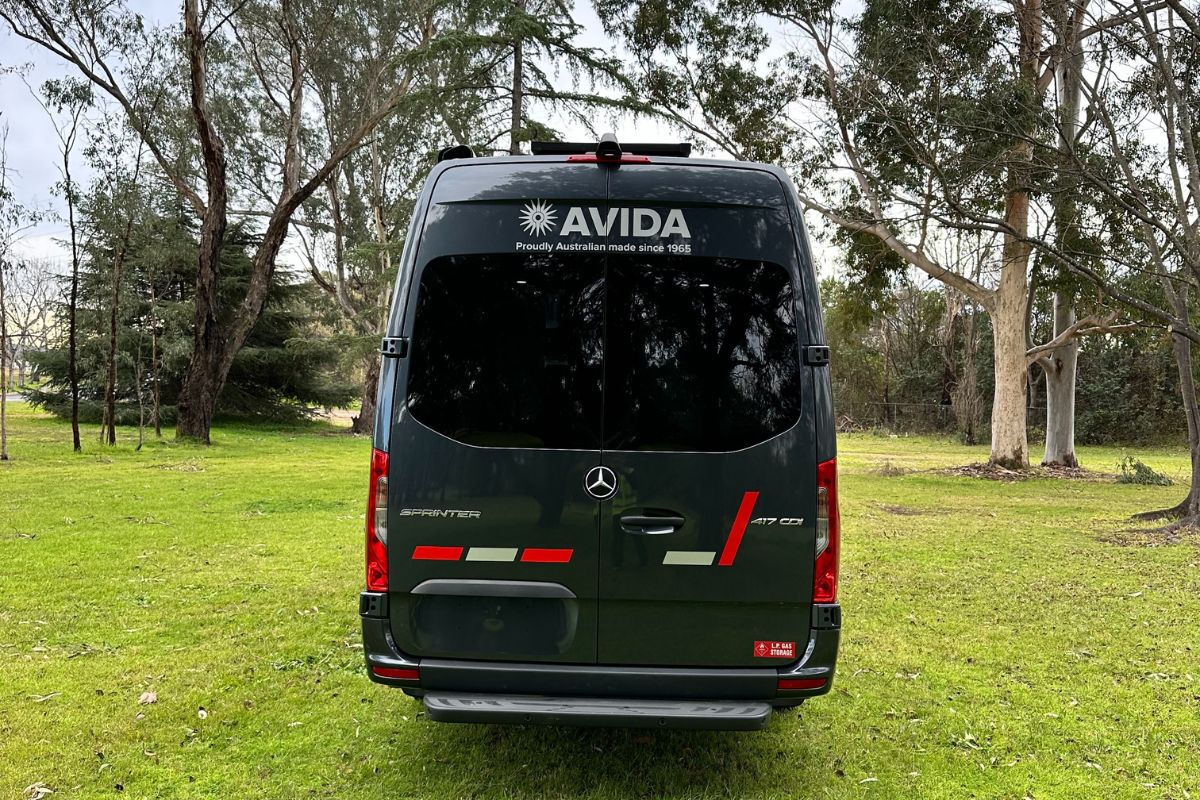

Exterior

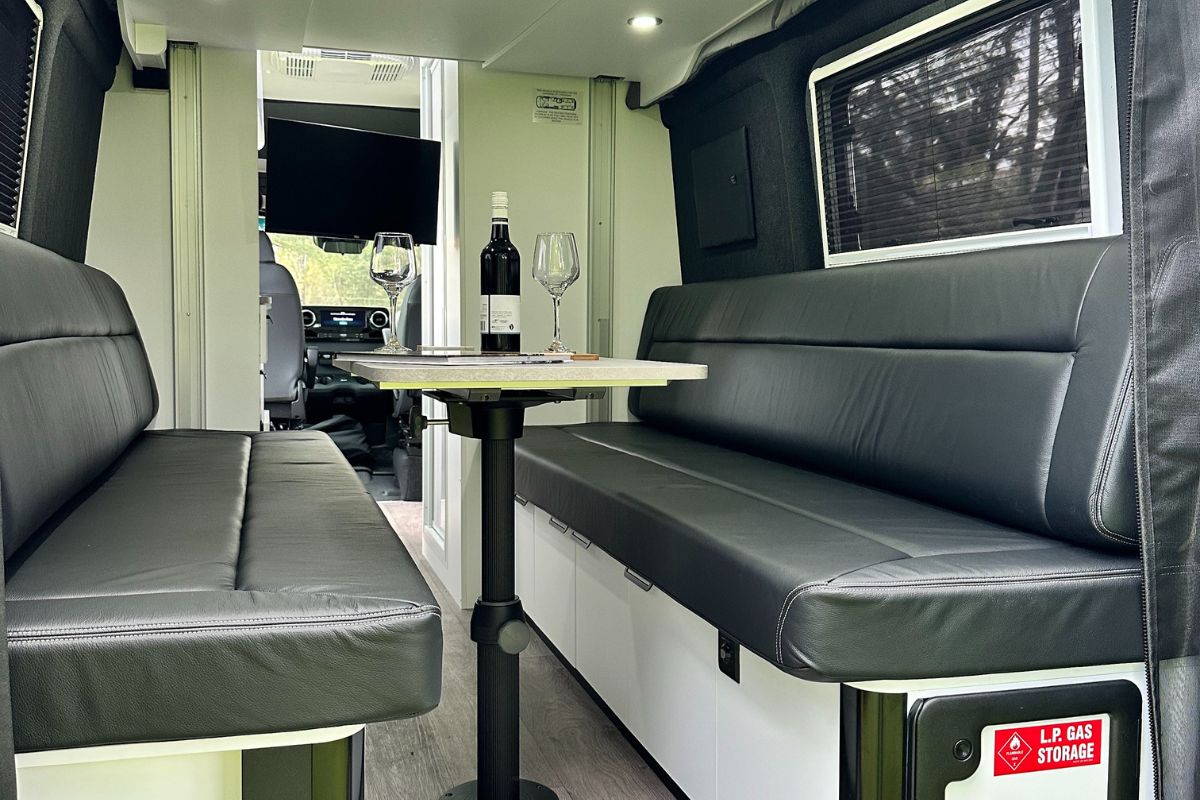

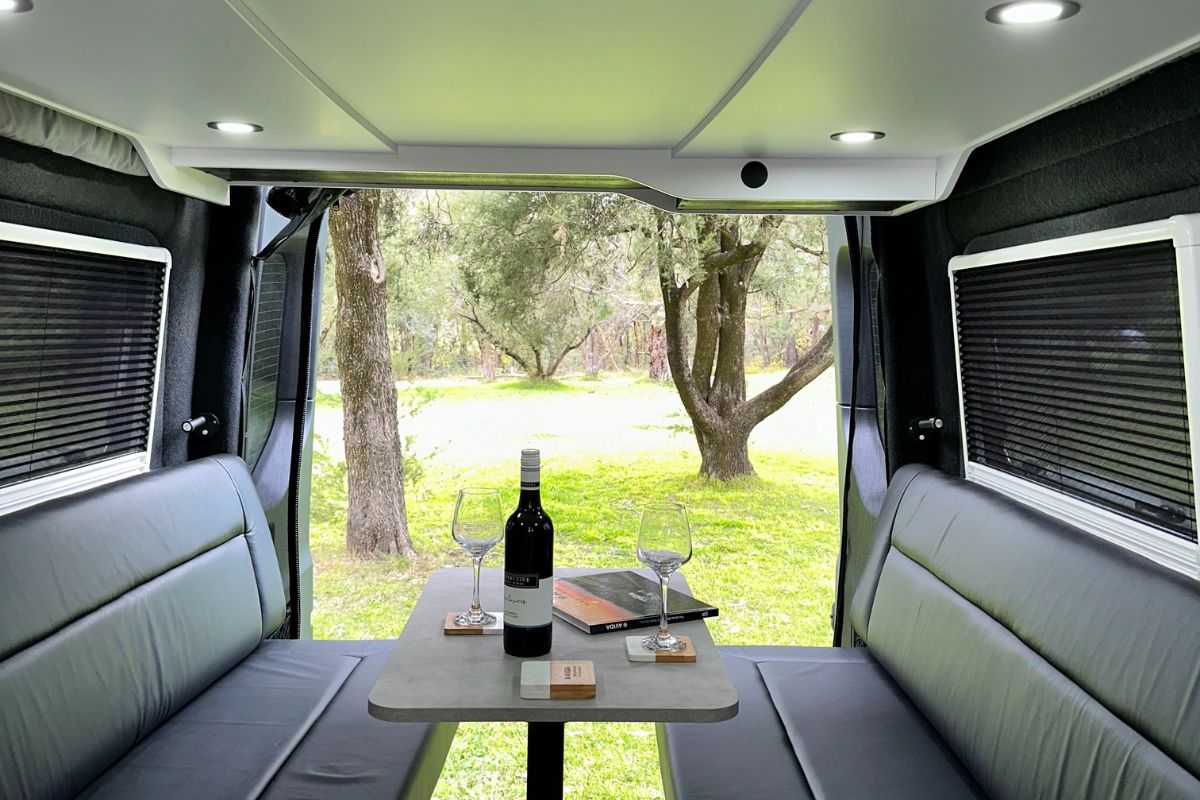

Interior
Exterior
Interior
Exterior
Interior
Exterior
Interior
Exterior
**Please read: Due to continuous improvements, photos & videos are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.

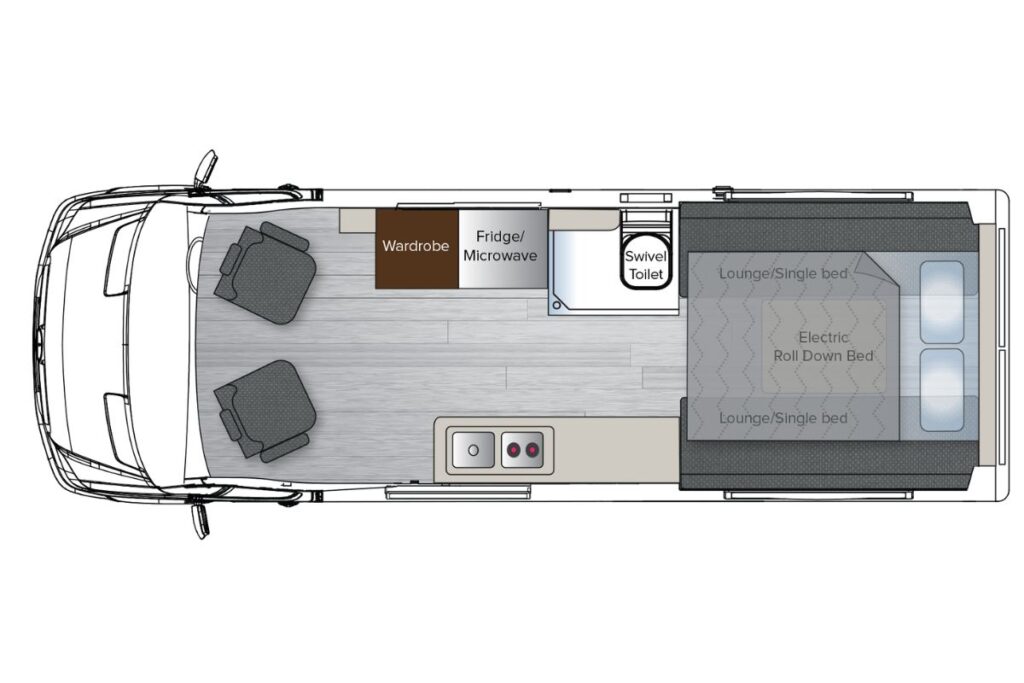

Floorplan
Your Space, Your Way
The Avida Diversion LX campervan is unrivalled with all its modern luxury inclusions, making life on the road second to none.
**Please read: Due to continuous improvements, floorplans are to be used as a guide only, specifications are subject to change without notice. For more detailed information please contact your nearest dealer.
Specifications and Features
Designed for Comfort, Built for Adventure
The Avida Diversion LX luxury campervan is built on the impressive Mercedes Sprinter Auto LWB chassis, standard with electric sliding door, grey metallic paint and 17” alloy wheels. It is 7-metres in length with all the mod cons, unrivalled to make your trip all that more special.
| Specification | Diversion LX V 7012 |
|---|---|
| Air Conditioner - Roof mounted | ✓ |
| Alarm system & GPS Vehicle Tracker | Optional |
| Avida's own 12V & 240V integrated distribution control panels & energy management system | ✓ |
| Awning - electric campervan | Optional |
| Awning - wind out | ✓ |

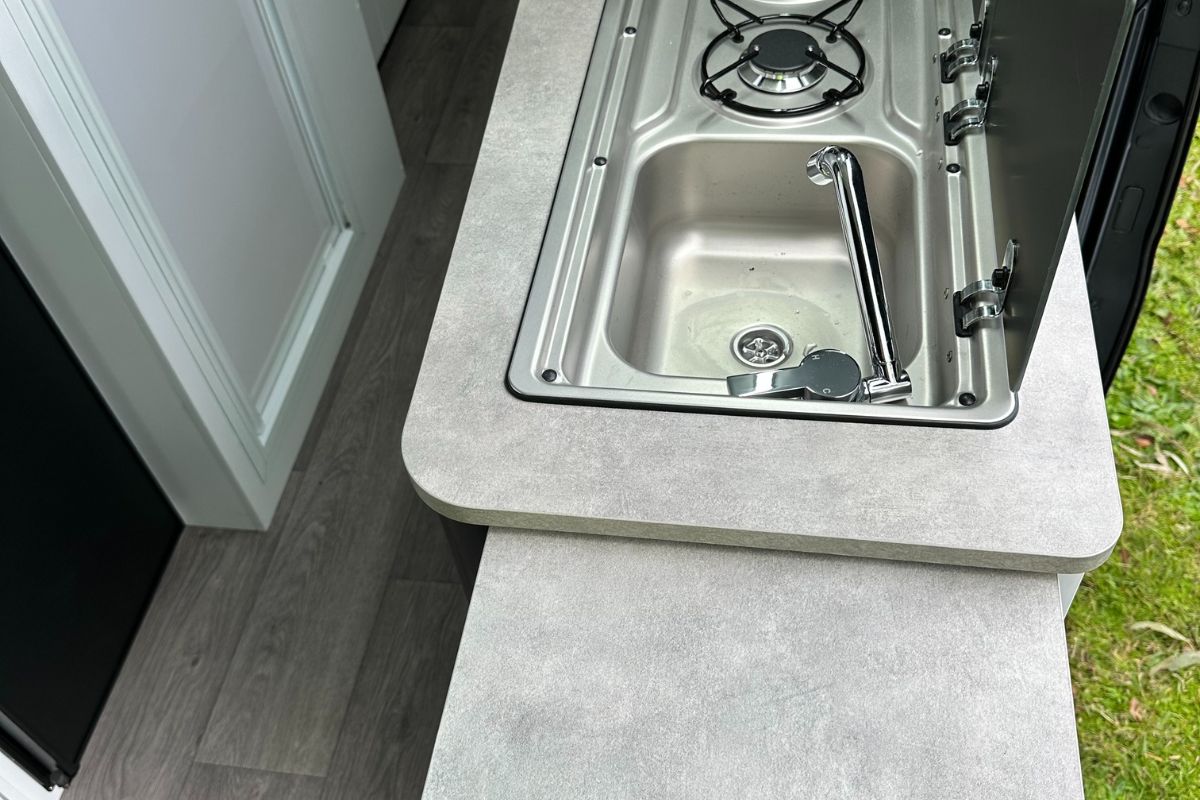

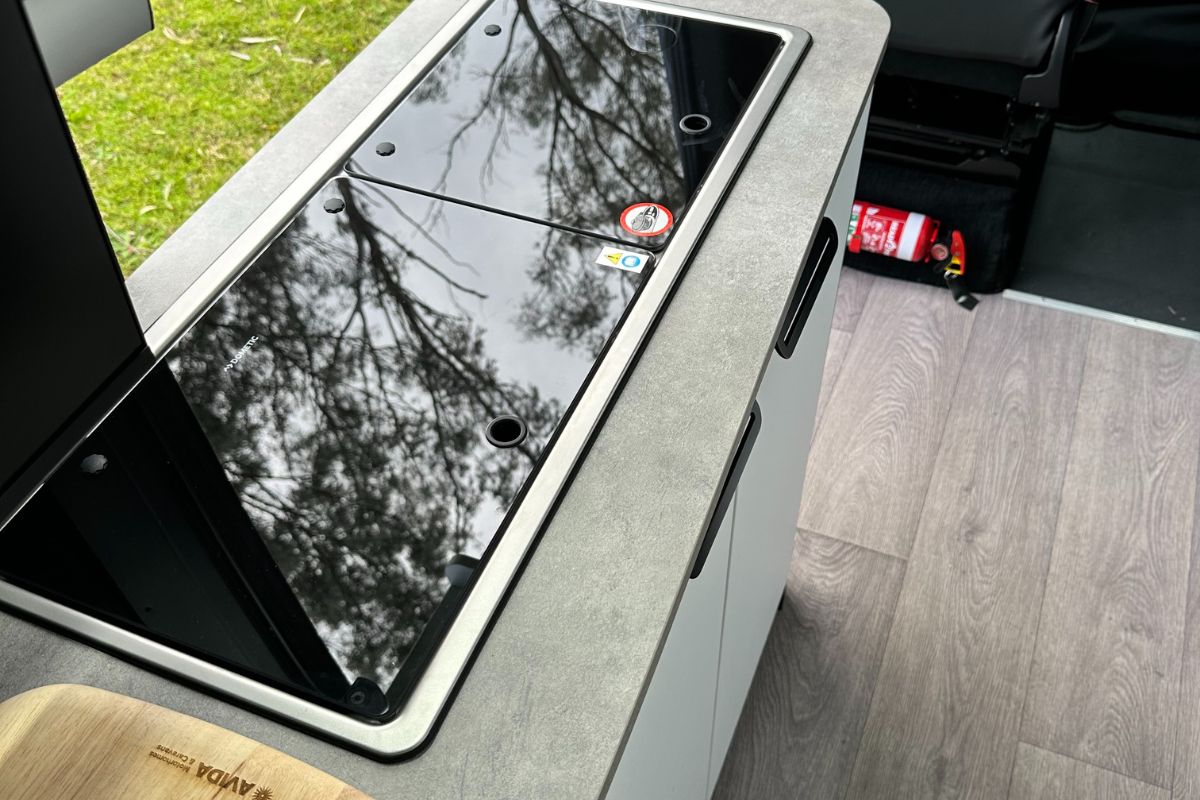

| Cooktop - Combination 2 burner LPG with stainless steel sink with glass lid | ✓ |
| Fridge / Freezer - compressor | ✓ |
| Heater - Diesel air heater 2kw | Optional |
| LP Gas Free – remove all LPG appliances and replace with Electrical appliances | Optional |
| Microwave | ✓ |
| Radio: External - Bluetooth All-In-One Audio | ✓ |
| Radio: Internal - Chassis & Bluetooth All-In-One Audio | ✓ |
| Reverse camera - reverse & 360 degree | ✓ |
| Starlink ready connections | ✓ |
| TV - Smart TV living room | ✓ |
| Specification | Diversion LX V 7012 |
|---|---|

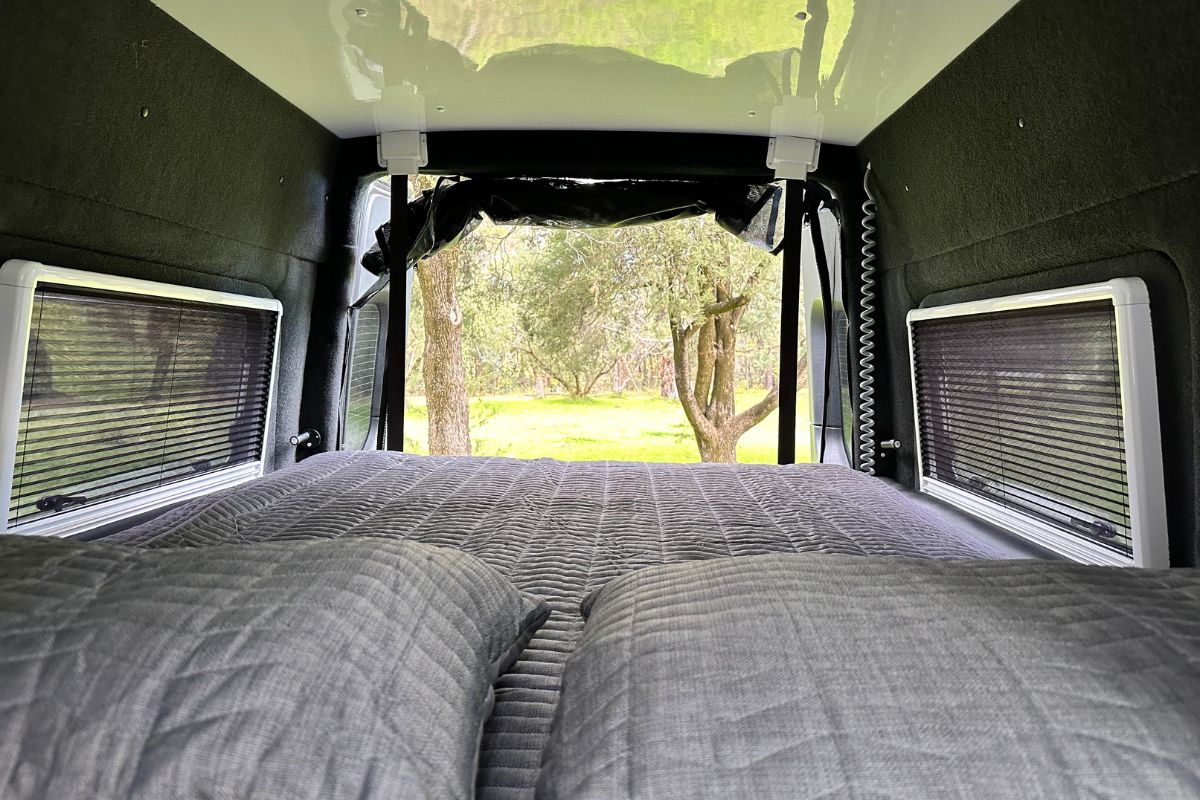

| Bed - Electric roll down (1370 x 1910mm) | ✓ |
| Benchtop extension | ✓ |
| Cupboards - Handle free overhead & Soft close | ✓ |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Fan - Oscillating fan | ✓ |
| Floor - one piece floor | ✓ |
| Hatch - Bathroom with 12v fan & living area | ✓ |
| Hot Water System - 12 volt electric start/gas & 240 volt | ✓ |
| Magazine holder | ✓ |
| Mat - Removable cabin mat - rubber | ✓ |
| Privacy screens - Windscreen, front doors & rear barn doors | ✓ |
| Shower | ✓ |
| Storage - internal | ✓ |
| Table - adjustable | ✓ |
| Toilet - ceramic bowl with cassette | ✓ |
| Upholstery - Leather with embroidered logo | ✓ |
| Wardrobe | ✓ |
| Water filter tap | ✓ |
| Window in bathroom | ✓ |
| Windows - double glazed with concertina style blind and fly screen | ✓ |
| Specification | Diversion LX V 7012 |
|---|---|
| Alloy wheels & All Terrain tyres 245/75R16 (5) with speedo adjustment | Optional |
| Awning light | ✓ |
| BBQ Fitting external | ✓ |
| Bumper bar – Front Adventure | Optional |
| Bumper bar – Front Adventure and warn winch | Optional |
| Driving lights on Adventure bar x 2. | Optional |

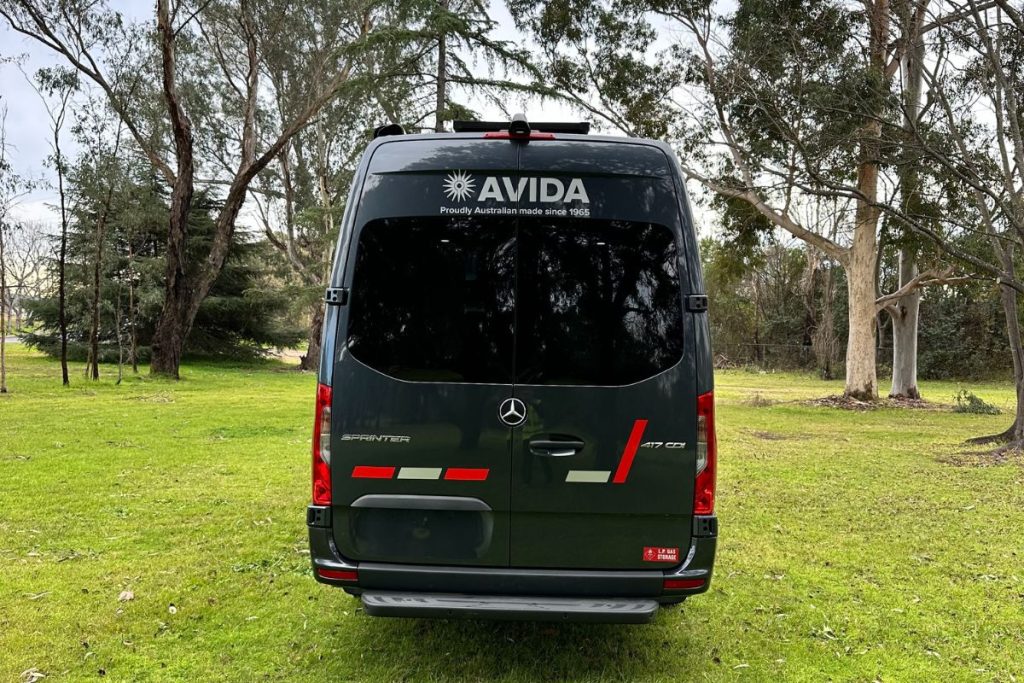

| Entry door - rear barn & electric side sliding | ✓ |
| Entry step - electric | ✓ |
| Exterior colour highlights - Black | ✓ |
| Flyscreen - Rear door clip on flyscreen | Optional |
| Flyscreen - Side door sliding flyscreen | ✓ |
| Mud flaps - front & rear wheels | ✓ |
| Rear door spare wheel carrier with ladder and additional 125 L freshwater tank | Optional |
| Roof rack kit - full size, including upgraded 300w solar, 50” driving light bar and rear work light | Optional |
| Shower - external with hot and cold water | ✓ |

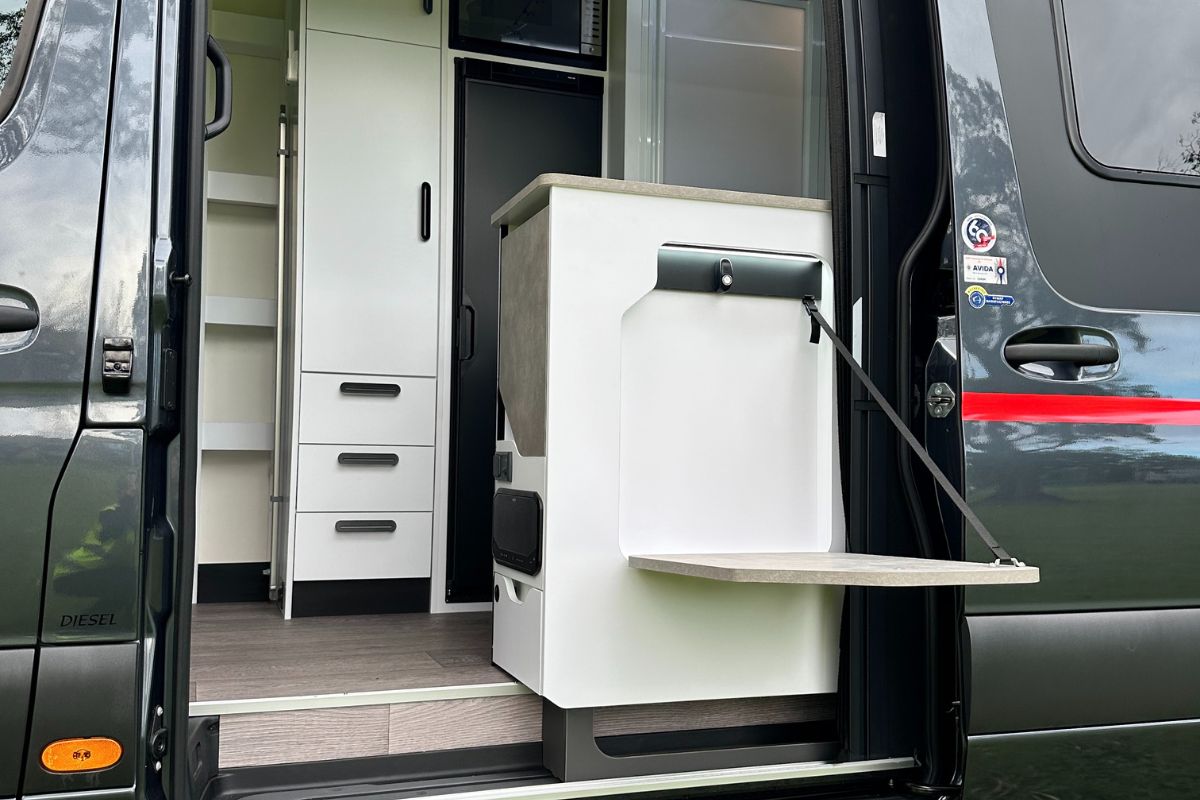

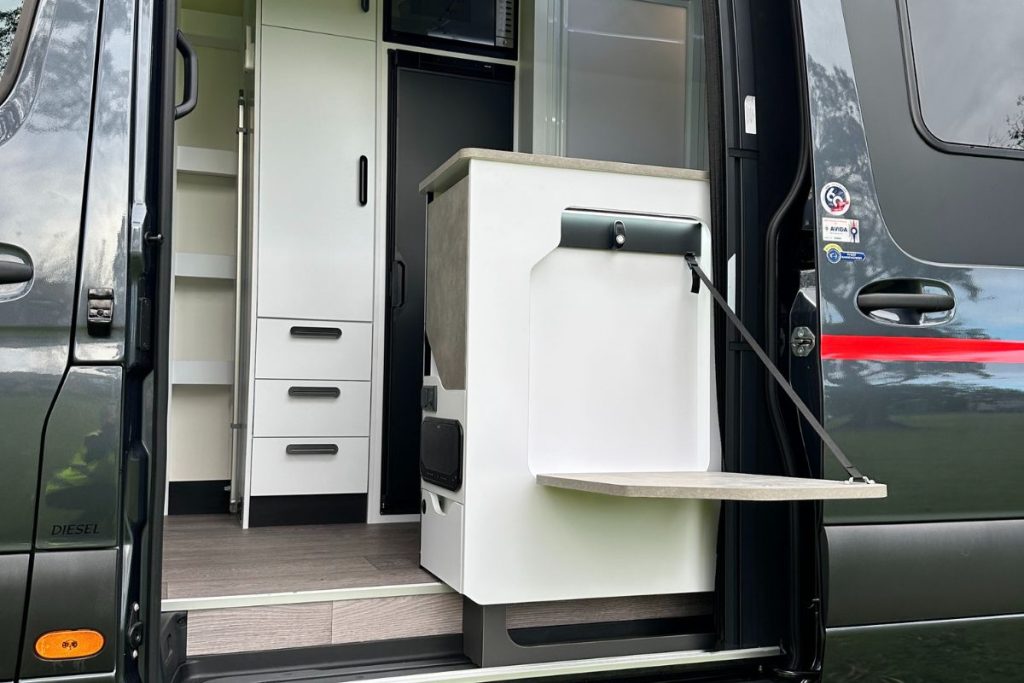

| Table - adjustable table intergrated with light | ✓ |
| Wheels - alloys | ✓ |
| Specification | Diversion LX V 7012 |
|---|---|
| Battery / Inverter - 300 Ah battery pack, 3000VA 12v Inverter with 120A 240v battery charger and 50A | ✓ |
| CBE Distribution Board | ✓ |
| Lighting - Additional feature LED lighting | ✓ |
| Lighting - Down lights, LED & mood lights | ✓ |
| Lighting - Reading lights with USB & USB-C | ✓ |
| Power point - 240 volt external | ✓ |
| Solar - 2 x solar blankets 200w (additional 400w/ total 650w) | Optional |
| Solar MPPT system with regulator - 250w | ✓ |
| Specification | Diversion LX V 7012 |
|---|---|
| ABS – Antilock braking system | ✓ |
| Advanced emergency braking | ✓ |
| Blind spot assist | ✓ |
| Daytime Running Lamps (DRLs) | ✓ |
| Earth leakage protector - 240V | ✓ |
| Entry step warning buzzer | ✓ |
| ESP – Electronic stability program control | ✓ |
| Fire extinguisher | ✓ |
| Lane keeping assist | ✓ |
| LP gas leak detector | ✓ |
| Smoke detector | ✓ |
| Traffic Sign recognition & High Beam Recognition | ✓ |
| Specification | Diversion LX V 7012 |
|---|---|
| Chassis | Mercedes Sprinter Auto 417 LWB Van (Tenorite Grey) |
| Chassis (Optional) | Mercedes Sprinter AWD 419 LWB Van (Blue Grey) |
| Chassis Voltage | 12V |
| Driver's Licence | ✓ |
| Electric windows - driver & passenger.. | ✓ |
| Engine | 4-cylinder, Turbo Diesel |
| Engine Displacement | 1950cc |
| Exterior Height | 2850mm |
| Exterior Length | 6970mm |
| Exterior Width | 2020mm |
| Fuel Tank | 93L |
| Fuel Type | Diesel |
| GPS Navigation - with 3D map display | ✓ |
| Gross Combined Mass (GCM) | 6100kg |
| Gross Vehicle Mass (GVM) | 4100kg |
| Incorrect fuelling protection system | ✓ |
| Interior Height | 1920mm |
| Keyless Entry with Push start button | ✓ |
| Power | 120kW @ 3800rpm |
| Swivel seats with lumbar support | ✓ |
| Torque | 360Nm @ 1400rpm |
| Towing Capacity | 2000kg |
| Transmission | Automatic (7 speed) |
| Type | Campervan |
| Water (Fresh) | 100L |
| Water (Grey) | 100L |
| Wheelbase | 4325mm |
| Wipers - Automatic.. | ✓ |
| Specification | Diversion LX V 7012 |
|---|---|
| Air conditioning - Automatic climate controlled | ✓ |
| All Terrain tyres 245/75R16 (5) with speedo adjustment | Optional |
| Bumper - Front bumper painted | ✓ |
| Chassis paint - metallic grey | ✓ |
| Cruise control with SPEEDTRONIC and variable speed limiter | ✓ |
| Drive type: AWD | ✓ |
| Electric mirrors- heated with wide angle and indicators | ✓ |
| Electric park brake | ✓ |
| Electric sliding door | ✓ |
| GPS Navigation - via Apple CarPlay or Android | ✓ |
| Media system - MBUX 10.25 inch multimedia touch screen system with Bluetooth | ✓ |
| Protection - Engine guard | Optional |
| Protection - Transmission guard | Optional |
| Side Steps | Optional |
| Snorkel -engine air intake | Optional |
| Steering wheel with height and reach adjustment | ✓ |
| Tinted windows in rear barn door | ✓ |
| Upholstery - Chassis seats - Black leather | ✓ |
| Specification | Diversion LX V 7012 |
|---|---|
| 60 months Capped Price Servicing | ✓ |
| 60 months Roadside Assistance (Chassis) - Limited time | ✓ |
| 60 months Structural Guarantee | ✓ |
| 60 months Warranty (Avida house) - Limited time | ✓ |
| 60 months Warranty (Chassis) - Limited time | ✓ |
| Australian Made | ✓ |
| Compliance - Certified weight certificate | ✓ |
| Compliance - RVMAP-accredited manufacturer | ✓ |
| Facebook support group | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners' personal login page - Experience Hub | ✓ |
| Service Schedule (Avida house) - every 12 months | ✓ |
| Service Schedule (Chassis) - every 12 Months, 30000 km | ✓ |
| Model | V7012 |
|---|---|
| Chassis | 2WD or AWD Mercedes Sprinter RWD LWB – Metallic grey |
| Type | Campervan |
| Exterior Length | 6970mm |
| Exterior Width | 2020mm |
| Exterior Height | 2850mm including A/C |
| Interior Height | 1920mm |
| Fresh Water Capacity | 100ltr |
| Grey Water Capacity | 100ltr |
| Black Water Capacity | 19ltr |
| Hot Water Capacity | 23ltr |
| LP Gas | 2 x 4kg |
| Drive Type | Rear wheel drive |
| Engine | 4-cylinder turbo |
| Displacement | 1950cc |
| Power | 120kw @ 3800rpm |
| Torque | 360Nm @ 1400-2400rpm |
| Transmission | Automatic |
| Fuel Type | Diesel |
| Fuel Capacity | 93lt |
| Wheelbase | 4325mm |
| Gross Vehicle Mass | 4100kg |
| Gross Combined Mass | 6100kg |
| Towing Capacity | 2000kg |
| Chassis Voltage | 12 volt |
| Licence Requirement | Standard car licence |
| Australian Made | ✓ |
| Compliance - Certified weight certificate ex-factory with every vehicle | ✓ |
| Compliance - RVMAP industry accredited manufacturer (look for the accreditation key) | ✓ |
| Facebook support group | ✓ |
| Insulated walls & roof | ✓ |
| Over 100 authorised service centres | ✓ |
| Owners Personal Login Page - Experience Hub | ✓ |
| Roadside Assist - Chassis | 5-Years / 250,000km |
| Service - Avida house | Every 6 months (first FREE service at Avida dealer) |
| Service - Chassis | Every 2-years / 40,000km |
| Structural Guarantee | 5-Years |
| Warranty - Avida | 3-Years |
| Warranty - Chassis | 5-Years / 250,000km |
| ABS – Antilock braking system | ✓ |
| Adavanced emergency braking | ✓ |
| Air conditioning - Chassis | Automatic climate controlled |
| Apple CarPlay and Android Auto compatible | ✓ |
| Blind spot assist | ✓ |
| Bucket seats – Colour co-ordinated | Chassis leather |
| Cruise Control | SPEEDTRONIC and variable speed limiter |
| Daytime Running Lamps (DRLs) | ✓ |
| Earth leakage protector - 240V | ✓ |
| Electric mirrors | Heated with wide angle and indicators |
| Electric park brake | ✓ |
| Electric sliding door | ✓ |
| Electric windows | Driver & passenger |
| Entry step wanring buzzer | ✓ |
| ESP – Electronic stability program control | ✓ |
| Fire extinguisher | ✓ |
| GPS Navigation | With 3D map display |
| Incorrect fuelling protection system | ✓ |
| Keyless Entry with Push start button | ✓ |
| Lane keeping assist | ✓ |
| LP gas leak detector | ✓ |
| Media system | MBUX 10.25 inch multimedia touch screen system with Bluetooth |
| Metallic paint | ✓ |
| Reverse camera | Reverse & 360 |
| Smoke detector | ✓ |
| Steering wheel with height and reach adjustment | ✓ |
| Swivel seats | With lumbar support |
| Tinted windows in rear barn door | ✓ |
| Traffic Sign recognition & High Beam Recognition | ✓ |
| Air Conditioner - Roof mounted | ✓ |
| Avida's own 12V & 240V integrated distribution control panels & energy management system | ✓ |
| Bed | Electric roll down bed |
| Benchtop extension | ✓ |
| Cooktop | Combination 2 burner LPG with stainless steel sink with glass lid |
| Cupboards - Handle free overhead & Soft close | ✓ |
| Diesel heater | O |
| Drawers - Residential Soft Close with metal runners | ✓ |
| Fly screen - Rear door | O |
| Fly screen - Sliding door | O |
| Fridge / Freezer | Compressor |
| Hatch - Bathroom | with 12v fan |
| Hatch - Roof | ✓ |
| Hot Water System | Endless Hot Water |
| Lighting - Down lights | ✓ |
| Lighting - LED | ✓ |
| Lighting - Mood lights | ✓ |
| Lighting - Reading lights | Rear lounge |
| Magazine holder | ✓ |
| Microwave | ✓ |
| Privacy screens | Windscreen, front doors & rear barn doors |
| Radio - Internal | Chassis & Bluetooth All-In-One Audio |
| Seating | Lounges & swivel chassis seats |
| Shower | ✓ |
| Storage - Internal | Under lounges |
| Tank & battery monitor system | ✓ |
| Toilet roll holder | ✓ |
| Toilet with cassette | ✓ |
| Towel hooks x 2 | ✓ |
| TV - Smart TV | ✓ |
| Upholstery | Leather |
| Wardrobe | ✓ |
| Windows | Double glazed with concertina style blind and fly screen (excl barn doors) |
| Awning | Electric |
| Awning - Light | ✓ |
| Battery - House battery | Lithium - 1 x 120A |
| Battery charger for motorhome battery | 80A |
| Battery OPTION - House battery | Lithium - 2 x 120A |
| BBQ Fitting | ✓ |
| Entry door | Rear barn & Electric side sliding |
| Entry step | Electric |
| Gas Bottles | 2x4kg |
| Inverter - 2,000VA (intergrated) | ✓ |
| Mud flaps | Front & rear wheels |
| Shower - External with hot and cold water | O |
| Solar - MPPT system with regulator | 1x 170w |
| Waste pipes – Large to allow for better flow and minimise blocking – 40mm in diameter | ✓ |
| Wheel Covers | Alloys |
| Bench tops – Selection to choose from | ✓ |
| Cabinetry – Choice of colours | ✓ |
| Decals – Choice of colours | ✓ |
| Seating - Choice upholstery | ✓ |
**Please read: Due to continuous improvements, specifications & features are subject to change without notice. For more detailed information please contact your nearest dealer.
Compare Our Luxury Motorhomes and Campervans
Diversion Campervan
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Leura Motorhome
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Avida’s spacious two pieces swing out the bathroom system.
—
Avida’s own 12V & 240V integrated distribution control panels & energy management system
Combination 2 burner LPG stove with stainless steel sink with glass lid
Electric roll down bed
—
Fridge/freezer – Compressor
Motorhome battery in addition to the chassis battery – 100V 12V
Need Help Choosing Your Next Campervan?
Australian Owned, Australian Built
The Avida Difference
Experience the Avida Diversion campervan with our industry leading support. Peace of mind with a customer relations team, over 100 accredited service locations and factory trained dealer network.
Over 100 Accredited Service Locations
Experience our great service with our factory trained dealer network, over 100 accredited service locations, our internal customer relations team, and a fast spare parts turnaround.
3-year Factory Backed Warranty
Customer support is paramount at Avida and that’s why every new Avida has a very important attribute we simply call “peace of mind” with our market leading 3 year factory backed warranty.
Free Roadside Assistance
Avida Roadside Assistance is provided by the chassis supplier for their 24 hour, seven day a week roadside assistance program to address your needs in the unlikely event of your RV breaking down
Accredited RVMAP Manufacturer
The RVMAP “Accredited” Badge on an RV is the ultimate proof of compliance – only Members who have attained RVMAP Accreditation are entitled to display it. Avida is a proud RVMAP manufacturer.
